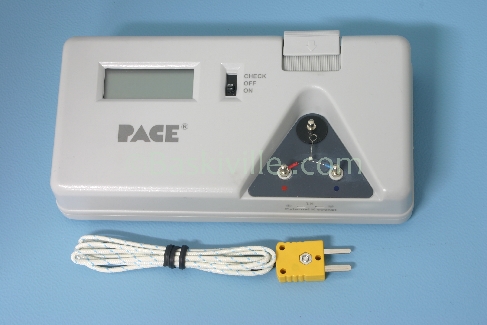

Tip Temperature Monitor

The Tip Temperature Monitor is a fast and accurate way to measure the surface temperature of a soldering tip where the tip actually contacts the work. Battery powered so its truly portable.

Part Number 8001-0087-P1

Regular Monitoring of tip temperature ensures that soldering equipment is operating within specification and also provides reassurance that your process is intact.

The Tip Temperature Monitor features a temperature sensor for measuring the surface temperature of soldering tips and an external K-type temperature probe that can be used to monitor the temperature of
solder pots and for other applications.

The Tip Temperature Monitor is quickly and easily calibrated using an internal precision resistor. We are sure you will agree that the Tip Temperature Monitor from PACE is an indispensable part of your soldering process!

Included with the unit are ten replacement temperature sensors (P/N 1285-0046-P1), one K-Type probe and one 9v battery.

Power Requirements: 9v Battery (included)
Temperature Scale: Celsius or Fahrenheit
Display Resolution: 1°C or 1°F
Temperature Range: 1°-600°C or 1°-1200°F
External Temperature Probe: Standard beaded K-type thermocouple
Tip Temperature Probe Input: Replaceable Sensor
Weight: 200g (.45 lbs)
Dimensions: 160mm W x 45mm H x 80mm D (6.3" W x 1.8" H 3.3" D)
