Dispensing

The ET8283 Series Dispensing Robot features a robust 3-Axis Cartesian Motion Platform.

This system is designed to Automate the controlled dispensing process. Once programmed to a specific application, this robot can quickly and accurately dispense materials to their desired locations.

Various types of Dispensing Needles, Syringes, Dispensing Valves, and Dispensing Controllers are available.

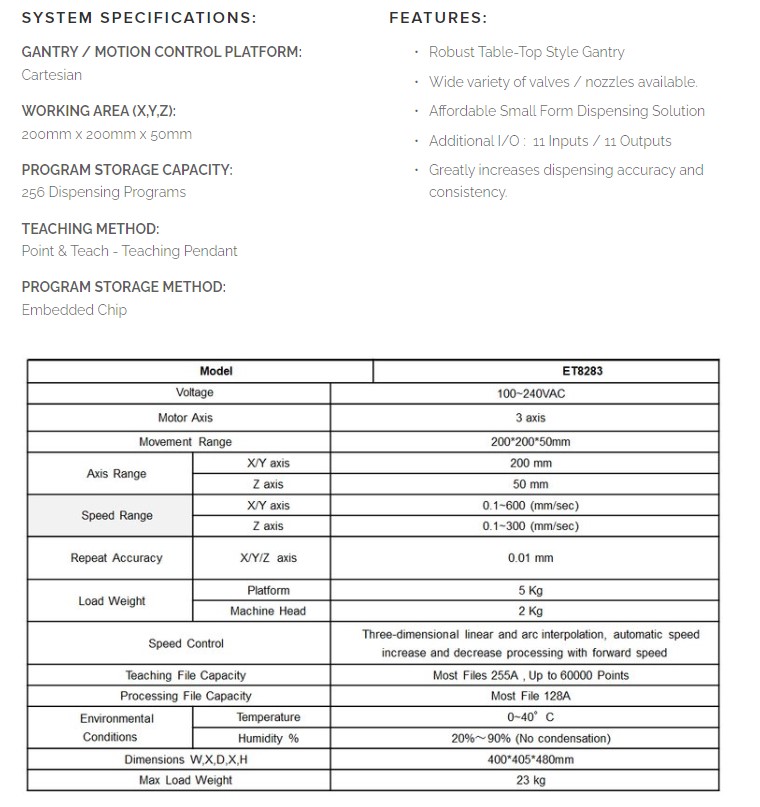

Power Supply 100~240VAC

Power Consumption 150W

Number of motor control axes 3 axes

Shaft driving range
X 200 mm
Y 200 mm
Z 50 mm

Shaft driving speed range
X/Y 0.1~600 (mm/sec)
Z 0.1~300 (mm/sec)

Repeated position accuracy
X/Y/Z 0.01mm

Overall dimensions (L* W *H) 400 x 405 x 480mm
