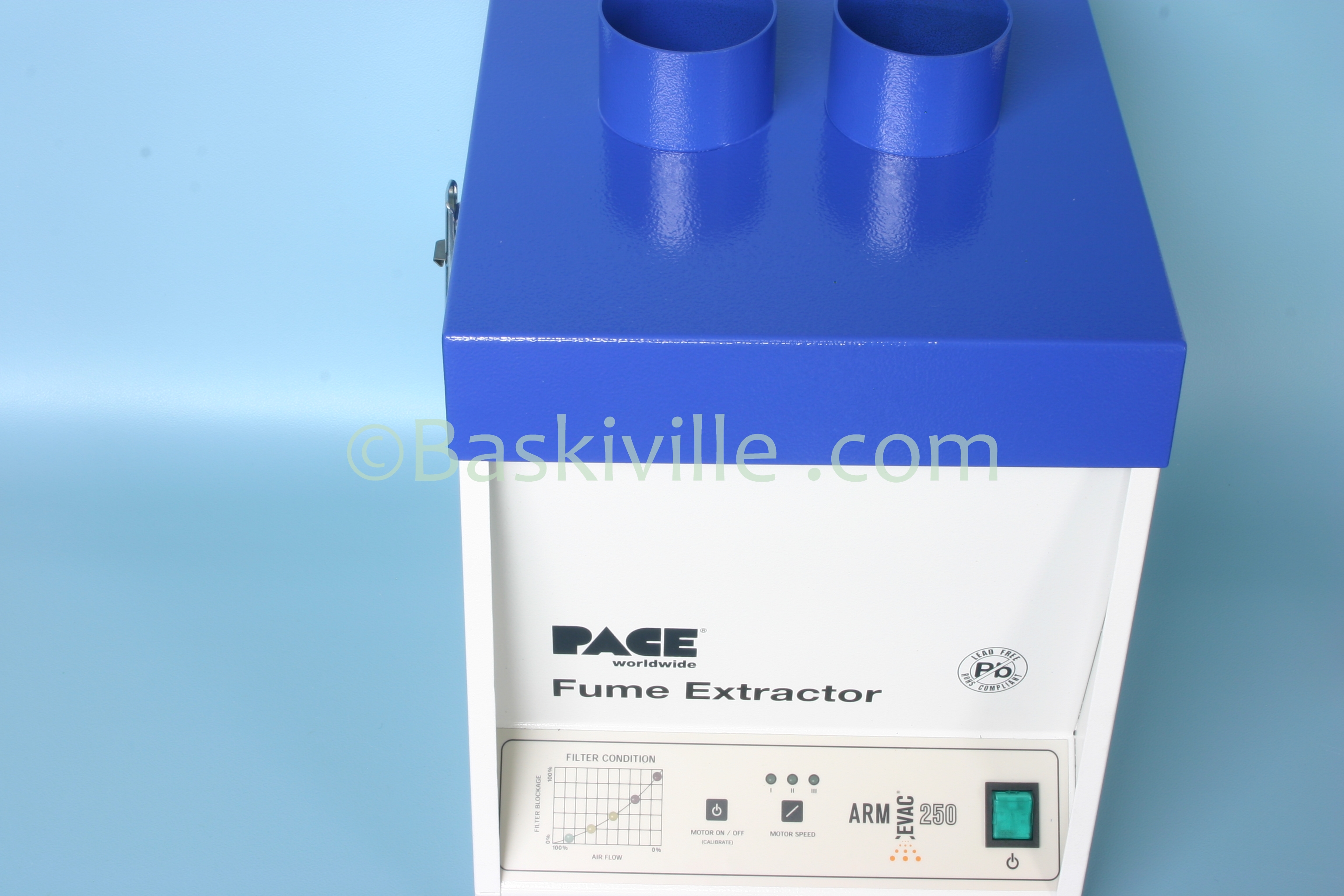

Arm Evac 250 Fume Extractor System, 240v, DISCONTINUED

DISCONTINUED use 8889-0350-P1 (bundle units w/ flex arm and hose)

High-Capacity Fume Extractoion System
The Arm-Evac 250 is ideal for heavy-duty operations that need high capacity and continuous particle filter monitoring. Incorporating microprocessor technology, an easy-to-read graphical LED filter condition monitor changes from green to yellow to red as the filter becomes clogged. Additionally, flow sensors
increase power to the motor as filters become blocked to assure peak performance. The filter monitoring system self calibrates using a membrane-switch on the front panel and an audible alarm alerts the operator when a filter change is required. A three-position motor speed switch is also on the front panel.
A wide variety of collection accessory options and filters are available. An optional silencer/mobile cart is available.

Microprocessor controlled
Three-color LED filter condition gauge
Laser-trimmed electronic air flow sensor
Self-calibrates to specific arm configuration
Audible alarm alerts operator of filter change
Three-speed air flow adjustment
Intelligent air flow compensation motor pump, increases speed as filter becomes loaded
Includes pre-filter, general purpose combo filter and power cord
Easy to read LED Filter Condition Monitor
Self-calibrating
Intelligent air flow compensation
Two 3 Inch Inlets
Low Noise Level (58 dBA)
Can be fitted with a Mobile Cart/Silencer
Numerous Filtration Options (Cleanroom Filter, Extended Life Filter, Economy Filter, etc.)
Multiple Configuration Options to Suit Your Work Space

Unit: Arm-Evac 250
Power Requirements: 230VAC, 50Hz 1.38 Amps
Size: 393mm H x 282mm W x 365mm D (15.4° H x 11.1° x 14.3° D)
Weight: 14 Kg (31 lbs)
Sound Level: 58 dB A

Flow rate:
General Purpose Filter: Single Inlet: 288 m3/h (170 cfm); Dual Inlet: 170 m3/h (100 cfm) per inlet
Cleanroom Filter Single Inlet: 255 m3/h (150 cfm); Dual Inlet: 135 m3/h (80 cfm) per inlet
Number of Collection Accessories: Four 45mm (1.75°) or 50mm (2°) or Two 75mm (3°)
Maximum Duct Run: 5m (16°) per inlet
System Options: Silencer/Mobile Cart, Remote Control Box
Standard Primary Filter: General Purpose Filter
Filtration Options: General Purpose Filter, Cleanroom Filter, Adhesive Filter, Extended Life Filter, Economy Filter

1 x Arm-Evac® 250 System
1 x Pre filter and general purpose combo filter
1 x Wireless Remote
1 x Power cord
Note: Extraction Arms and accessories are purchased separately

8889-0250-P1-TDS.
