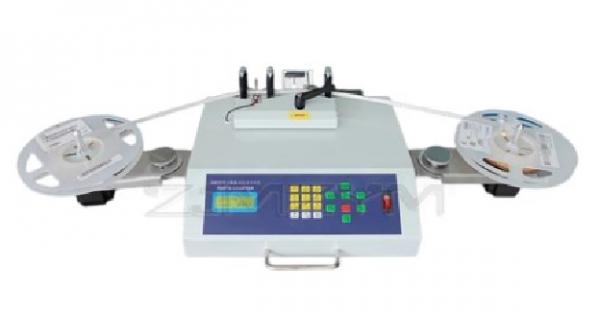

SMD 901E Component Counting Machine, 220v

901E Automatic SMD Parts Component Counter Counting Machine, 220v

Adjustable speed SMD parts counter Features:
1. the operation is simple, quickly really set the function.
2. can be preset the number of parts, easy to point material, hair and picking operations designed for SMD material with parts design.
3. positive and negative can count, accurate calculation of the number of zero error.
4. can be installed scanning gun and bar code printer to facilitate the management of operations.
42 Motor Adjustable Speed Points
The SMD material belt type components are all suitable

901E Basic Type
Speed: 24 seconds/disk 5000
Motor: Domestic 42 stepper
Function: 200CM 600PCS / min
Rated power: 30W
Count: -99999 to 99999pcs
Material Pulley Diameter: Any SMD tape pulley size can be used
Material Interval: 2,4,8,10,12,16,24,32,44,56mm cycle set
Material Width: 8,12,16,24,32,44,56mm
Processor: Single core
Weight: 10Kgs


Refer to Data Sheets Section for more Information

BAS901902_ Motor_Board_Gear BAS901902_Applications BAS901902_Labeled Diagram
