Desco Emit Surface Resistance Meter kit Replacement for 19787

Surface Resistance Meter kit DES19290


NEW Large OLED Display

Displays resistance mantissa and exponent, temperature, relative humidity and test voltage

NEW Internal Memory

Stores and recalls up to 100 measurements. Captures resistance, temperature, humidity and test voltage.

NEW Measurement Stability Modes

Sets the 15-second electrification period for test requirements

NEW Electrode Spacers

Spaces the 5 lbs. electrodes to 10 and 36 inches for resistance point-to-point (Rtt) measurement requirements of ANSI/ESD S.1 and ANSI/ESD S4.1

NEW Measurement Location Labels (Pack of 25)

Labels and tracks areas and materials measured for surface resistance

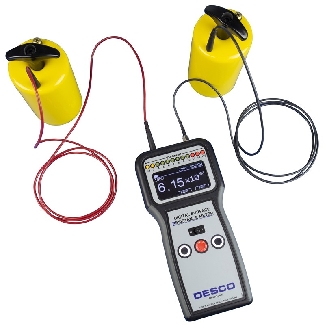

Digital Compliance Verification Surface Resistance Meter Kit

Measures resistance point-to-point (Rtt) and resistance-to-ground (Rtg) of worksurfaces, flooring systems, garments, packaging, and other materials in accordance with ESD Association documents: ESD TR53, ANSI/ESD S4.1, ANSI/ESD S7.1, ANSI/ESD STM97.1 and others

Resistance Range: 1.0 x 103 to 1.0 x 1012 Ohms

Determines if a surface is conductive, dissipative or insulative for ESD control applications in electronics manufacturing or handling environments

Under Load Test Voltages (10V or 100V ±5%)

Meets ANSI/ESD S20.20 resistance testing requirements for product qualification and compliance verification

50005 Concentric Ring Probe Accessory

Measures surface resistance per ANSI/ESD STM11.11 and volume resistance per ANSI/ESD STM11.12 of planar material

NEW 19295 Handheld Electrode Accessory

Meets resistance measurement requirements of TR53, ANSI/ESD STM97.1 and other documents

NIST Calibrated with Certificate Included

Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, see Calibration.
Made in the United States of America

1 Digital Surface Resistance Meter
2 Test Leads, 5' Length
2 5 lbs. Electrodes
1 Electrode Spacer, 10"
1 Electrode Spacer, 36"
4 AA Alkaline Batteries
1 Ground Plug Adapter
1 Gator Clip
25 Measurement Location Labels
1 Plastic Carrying Case
1 Certificate of Calibration



*Measurement Stability Modes:
Auto Stabilization enables a 15-second electrification period when the measured resistance is 1 x 1010
ohms or greater to maintain test accuracy.
Fixed Stabilization complies with ANSI/ESD S4.1 and enables a 15-second electrification period when
the measured resistance is 1 x 106 ohms or greater.
