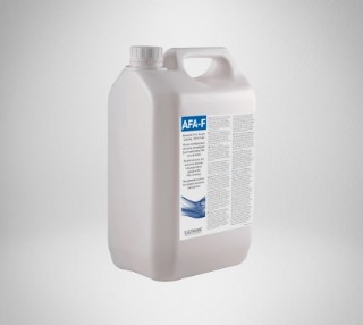

Electrolube AFAF Aromatic Free Acrylic Conformal Coating 5 L

AFA-F is a modified 'Film Coat' version of AFA Aromatic Free Acrylic conformal coating which has been formulated as a ready for use product suitable for selected film coating machines.

Formulated especially for use with selective coating machines using non-atomised film-coat applicators.
Excellent clarity, ideal for LED applications
Excellent adhesion to a wide variety of substrates
Wide operating temperature rangeFree from aromatic solvents such as Toluene and Xylene;
Excellent protection in humid environment and outstanding salt mist resistance.
UV trace to aid inspection
UL746-QMJU2 Approved
UL94 V-0 Approved
Meets IPC-CC-830 & Meets MIL-1-46058
RoHS Compliant

Approvals:
RoHS Compliant (2015/863/EU) IPC-CC-830 UL746-QMJU2: Yes Meets Requirements Approved File Number: E138403
Liquid Properties
Appearance: Pale Coloured Liquid
Density @ 20°C (g/ml): 0.87
VOC Content: 80%
Flash Point: Approx. -7°C
Solids content: 19% ± 2%
Viscosity (mPa s @ 25°C): 60 - 80
Touch Dry: 5 - 10 minutes
Recommended Curing Time: 24 Hours @ 25°C
30 Mins @ 70°C
Coverage @ 25µm: 8m 2 per litre
Dry Film Coating
Colour: Colourless
Operating Temperature Range: -65°C to +125°C
Flammability: UL94 V-0
Thermal Cycling (IPC-CC-830B): Meets Requirements
Coefficient of Expansion: 130ppm
Dielectric Strength: 45kV/mm
Dielectric Constant: 2.5
Surface Insulation Resistance: 1 x 1015 ?
Comparative Tracking Index: >300 Volts
Dissipation Factor @ 1MHz, 25°C: 0.01
Moisture Resistance (IPC-CC-830B): Meets Requirements

AFAF05L_TDS
