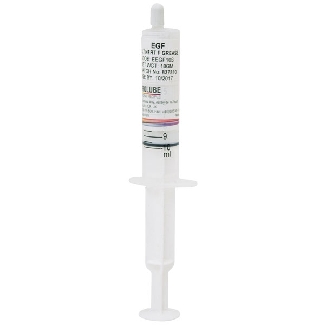

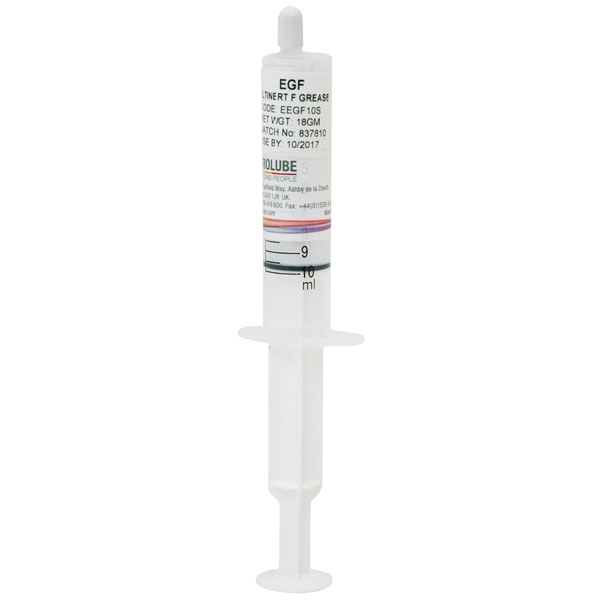

Electrolube EGF10S Eltinert F Grease

Electrolube Eltinert F Grease

The Eltinert series of contact lubricants have been developed to provide superior protection to electrical contacts under the most difficult conditions. These include extended periods at high temperatures and under corrosive chemical atmospheres. They are also ideal for the protection of noble metals, either in
switches or connectors.

Excellent chemical resistance
Exceptionally wide operating temperature range
Prevents and cures high contact resistance caused by silicone contamination
Oil version (EOF) and dilute oil version (DOF) available

Size: 10ml Syringe, Also available in 1KG bulk
Colour: White
Density: (g/ml) 1.9
Temperature Range: (°C) -25 to +300
Vapour Pressure: 10-8 Torr @ 20°C, 8 x 10-2 Torr @ 250°C
Evaporation Weight Loss: (% 7 days @ 100°C) 0.8
Copper Strip Corrosion: (IP154 / ISO 2160) =1b
Drop Point: (IP32 / ISO 2176 (°C)) >250
Cone Penetration Worked: (ASTM D217, 60 strokes @ 20°C) 280
Consistency: (NLGI) 2
Flow Pressure) (DIN 51805, mbar @ -40°C): 1100
Oil Bleed / Separation (IP121): 5%
Plastic Compatibility - ABS: Test
Plastic Compatibility - PC: Test
Thickener: Fumed Silica
UV Trace: No

EGF TDS.
