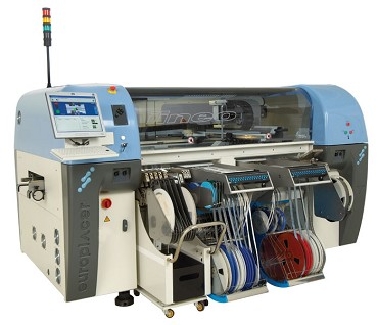

Europlacer iineo 1 SMT Pick and Place Machine

iineo is widely configurable, allowing for 24 different machine possibilities, for the single head machine:

Linear motor gantry including a rotary turret head with 8 or 12 pickup nozzles
1 board positioning mechanism
Oversized board options
Feeders in front and rear, or front only


The striking iineo platform features many improvements to the Europlacer machine range, such as an extremely high feeder count, largest industry board size and increased maximum
component height.

The platform uses Europlacer unique Integrated IntelligenceTM plus proven core features:

highly robust and flexible turret head
intelligent feeders
3DPS
powerful software tools


while introducing new technologies with linear motors and digital cameras.

Heads: 1 rotary head on linear X/Y gantry
with 8 or 12 pick ups & a 40 position smart nozzle bank (different options available)
Rate: 14 000 cph (0.257 sec. per chip)
Components

01005 to 50x50mm
(70 x70mm and 100mm connectors in option)
Lead Pitch:

0.3mm (QFP), 0.4mm (µBGA)
0.15mm (QFP), 0.2mm (µBGA) with fixed camera option

Lead size: 0.15mm (QFP), 0.2mm (µBGA)

0.07mm (QFP), 0.1mm (µBGA) with fixed camera option

Accuracy: standard 35µm (QFP) to 60µm (Chip)

Feeders: 264 * 8mm + 10 Jedecs

Max PCB Size:

700 x 460mm or
700 x 600mm or
1000 x 460mm or
1000 x 600mm or
1610 x 460mm or
1610 x 600mm

Long pcbs
Wide pcbs
Very long / wide pcbs
Glue dispenser:
Time/pressure or Archimedean screw
Electrical test
Fixed camera
Conveyor auto width adjustment
Additional nozzle magazine
Special nozzle magazine
Display and keyboard at the rear
Internal matrix tray holder
