Provides the best soldering quality thanks to JBC Exclusive Heating System and additionally, Sleep & Hibernation modes help to extend life of tips
Sleep and Hibernation mode: These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature: Limit the temperature range in which the operator is allowed to work.
Temperatue levels: Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
PIN protection: Keep station parameters protected against unauthorized access.
- Selectable Temperature: 90 to 450 Degrees Celsius
CONNECTIVITY
- USB-B: Software PC / Firmware update
Equipotential bonding
ESD/EOS
ESD Safe
- Tip to ground resistance: <2 ohms
- Tip to ground voltage: <2 mV RMS
POWER SUPPLY
- Peak power: 130 W - 23,5 V
- Ambient operating temp.: 10 to 40 Degrees Celsius
DIMENSIONS AND WEIGHT
- Control Unit: 150 x 175 x 145 mm / 2,67 kg
- Package: 234 x 234 x 258 mm / 3.15 kg

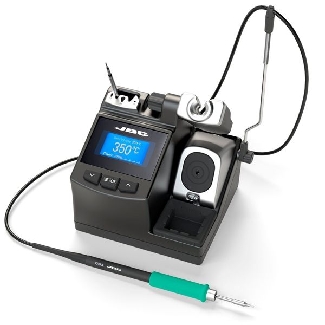

1 x Control Unit
1 x T245-A General Purpose Handle (cartridges / tips not included)
NOTE: CARTRIDGES NOT INCLUDED
