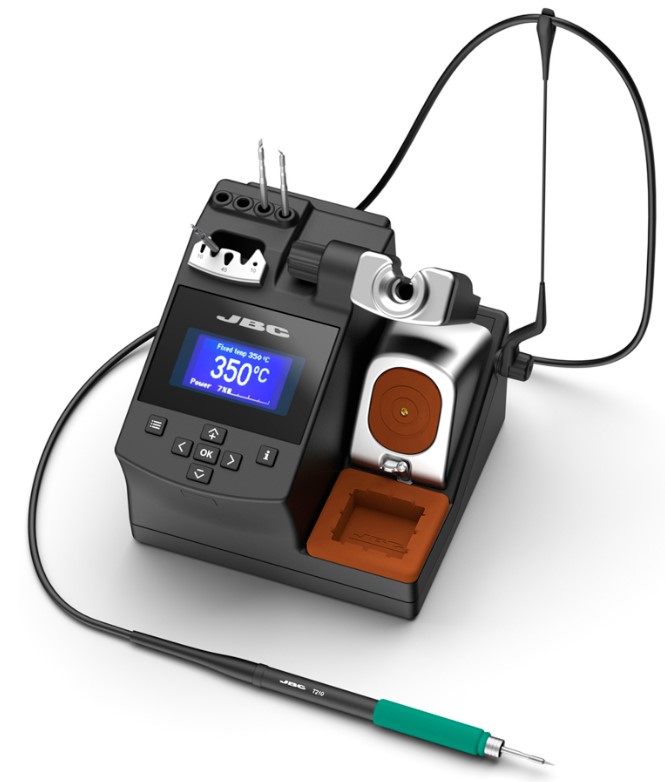

JBC CD-2SQF Compact Precision Soldering Station

JBC CD-2SQF Compact Precision Soldering Station

Newly Upgraded!

More intuitive and well-connected

This station is ideal when working on populated PCBs or under a magnifying glass.

It uses T210 Precision Handle, the perfect handpiece for accuracy soldering jobs with medium power requirements.

This station includes:

Fast and easy configuration of the station thanks to the 7-key keypad.
Cartridge Holder to store up to four cartridges, as well as Cartridge Extractor and Cable Collector.
Connectivity to JBC Fume Extractor (connector RJ12).
****Tips are sold separately****


It provides the best soldering quality thanks to JBC Most Efficient Soldering System and, additionally, the Sleep & Hibernation Modes help to extend the life of tips.

Selectable Temperature: 90 to 450 Degrees Celcius
CONNECTIVITY
USB-B: Software PC / Firmware update
Equipotential bonding: Optional connection to EPA
RJ12 Connector
Earthing Fuse: F 1.25A
ESD/EOS
ESD safe
Tip to ground vol./ resist.: Meets and exceeds ANSI/ESD S20.20-2014 IPC J-STD-001F
POWER SUPPLY
Peak power: 40 W - 23.5 V
Ambient operating temp.: 10 to 50 ºC / 50 to 120 ºF
DIMENSIONS AND WEIGHT
Compact Stations: 170 x 176 x 145 mm / 2.70 kg.
Package: 234 x 234 x 258 mm / 3.27 kg.

CD-2SQF Manual CD-2SQF parts
