This station is the perfect solution for fast and precise SMD rework of chip components and small outline ICs.
It provides all the advantages of the JBC Most Efficient Soldering System.
Peak power: 150 W per tool - 23.5 V
Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
Temperature accuracy: ±3%
ESD safe: Meet ANSI/ESD S20.20-2021
Equipotential bonding: Connection to EPA
Tip-to-ground resistance: <2 ohms
Tip-to-ground voltage: <2 mV RMS
USB-A: Firmware update
Graphics and profiles
USB-B: PC communications
FAE / Robot connector: Remote control or FAE Fume Extractor connection
Control Unit
232 x 148 x 120 mm / 7.78 kg.
9.13 x 5.83 x 4.72 in / 17.15 lb.
Package
545 x 345 x 275 mm / 8.79 kg.
21.46 x 13.58 x 10.83 in / 19.37 lb.

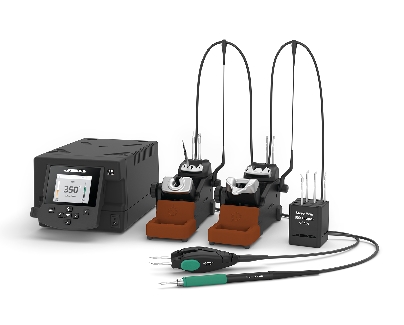

DDE 2-Tool Control Unit manages up to two tools simultaneously and is fully compatible with 10 different JBC tools.
T210 Precision Handle and AM120 Adjustable Micro Tweezers.
T210 works with C210 Cartridge Range and AM120 with C120 Cartridge Range.
Two stands with a complete Tip Cleaning System, Quick Cartridge Exchanger and a Cartridge Holder to store up to four cartridges.
SCH Cartridge Holder to store up to 16 cartridges and tips nearby.
TIPS SOLD SEPARATELY
