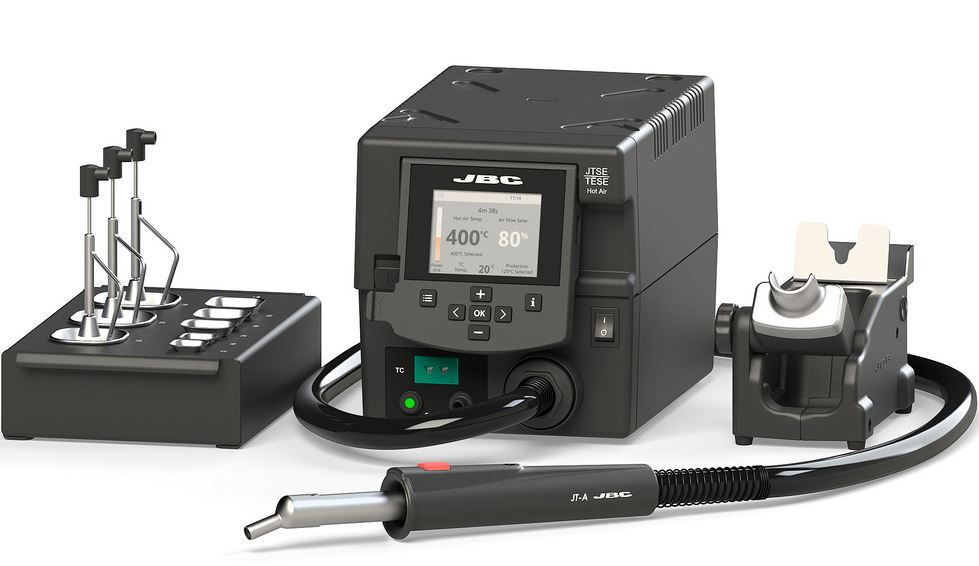

JBC Digital High Power Hot Air Station

JCB High Power Hot-Air Station with Accessorie Nozzles and Extractors

The JTSE hot air station is perfect for rework and repair tasks on a wide range of circuit boards.


This highly flexible soldering station has a number of different modes allowing you to adapt to the rework tasks being performed. Temperature and air-flow rate can be adjusted and stored for future automated recall.


Technicians can read the temperature at a specific point on the PCB thanks to the control thermocouple. This helps to protect components and allows for greater precision.


The auto-stop function automatically cuts-off the heat when the tool is placed into its stand.

Selectable Temperature 150 to 450 ºC (300-840 ºF)
Air flow 5 to 50 SLPM
Temperature profiles: Design specific thermal profiles to avoid thermal shock during soldering processes. Up to 25 fully configurable soldering profiles can be stored.
Operating modes Heating / Profiles / Cooling
Vacuum 30% / 228 mmHg / 9 inHg

CONNECTIVITY Type K thermocouple:
Can be used both for Control and Protection purposes.
USB-B (rear)Software PC
USB-A (front)Firmware update, Graphics / Profiles management
RobotRS-232 remote control
Pedal Optional tool control

Equipotential bonding Optional connection to EPA
ESD/EOS ESD safe

POWER SUPPLY Peak power 700 W
Ambient operating temp. 10 to 50 ºC / 50 to 120 ºF

DIMENSIONS AND WEIGHT
Premium Stations
230 x 148 x 160 mm / 4.93 kg.
9.06 x 5.83 x 6.30 in / 10.86 lb.
Package
474 x 368 x 195 mm / 6.01 kg.
18.66 x 14.49 x 7.68 in / 13.25 lb.

Control Unit: Hot Air
Tools: JT-T2A 230V - Heater hose set
Stands: JT-SD

PH218 Thermocouple Type K,
T2050 Tripod 39 mm,
T2250 Tripod 85 mm,
JN2020 Nozzle for JT heater,
JN2015 Nozzle for JT heater,
JN2012 Nozzle for JT heater,
E2052 Extractor 20 x 20 mm,
E2064 Extractor 20 x 26 mm,
E2184 Extractor 24 x 24 mm,
P2220 Protector 10 x 10 mm,
P2235 Protector 12 x 17 mm,
P4000 Protector 12,4 x 12,5 mm,
P2230 Protector 15 x 15 mm,
P4010 Protector 17 x 17 mm,
0008752 Extractor Desk
