Product Code Changed To: JBCPHSE-2KB

This model has been discontinued. New model now JBCPHSE-2KB

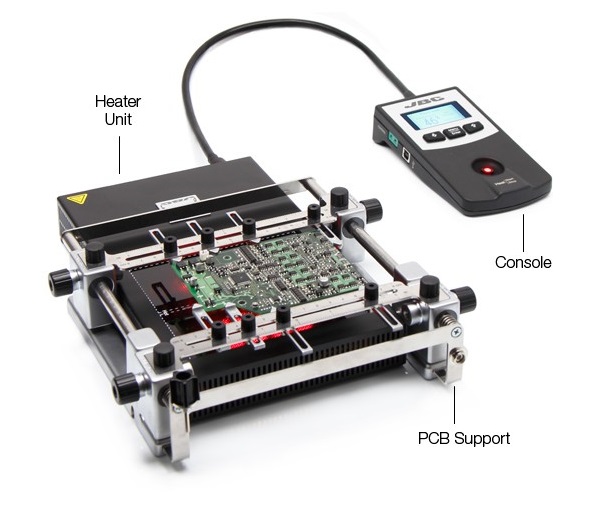

This is a complete system for preheating multilayer PCBs by applying infrared. It is ideal for repetitive jobs since the system is able to run a specific temperature profile without the need of a thermocouple. JBC offers you 3 predefined temperature profiles and 10 more to personalize.

Using the console you can select the mode of operation: by power or by temperature.
The Heater Unit works with 1 or 2 heating zones and the PCB Support has 3 adjustable heights.

Weight: 4.9 kg (10.8 lb)
Dimensions Heater Unit: 173 x 282 x 41 mm
Voltage: 230V
Maximum Power: 500VA
Heating Area: 65 x 135 mm (1 zone), 130 x 135 mm (2 zones)
Temperature Range: 50 to 250ºC (120 to 482ºF)
Temperature Measurement: Thermocouple type K
JBCset Temperature Profiles: 3 profiles ( 2, 3 or 4 steps)
User Temperature Profiles: 20 (up to 6 steps for each)
Maximum work time: 600 min. or indefinite
Fuse: 4 A T
Package weight: 5.956 kg (13.13 lb)
Package dimensions: 368 x 368 x 195 mm

JBCPHS-2KC - Manual (Lastet Model)
