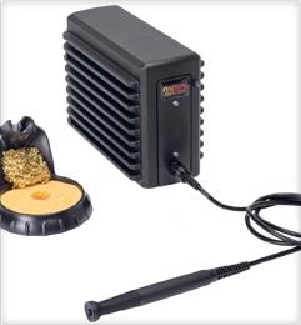

Metcal MFR-1160 Single Output Soldering Station

MFR-1160

The MFR-1100 Single Output Series is highly versatile in that it can be used with either a soldering tip, cartridge or
tweezers and offers a choice of four hand-pieces. The MFR-1160 comes with a Cartridge Hand-piece especially
designed for Metcal SSC cartridges. This system will allow users of the Metcal SP200 Soldering System to continue
to use their Metcal SSC cartridges.

Power Supply:

Ambient Operating Temperature: 10 - 40°C (50°F - 104°F)
Maximum Enclosure Temperature: 55°C (131°F)
Input Line Voltage: 100 - 240 VAC
Input Line Frequency: 50/60 Hz grounded circuit
Power Consumption: 65 Watts maximum
Output Power: 60 Watts maximum
Output Frequency: 450 KHz
Power Cord: (3-wire) 183 cm 18/3 SJT
Dimensions (approx.) W x D x H: 90mm (3.5'') x 200mm (8'') x 152.5mm (6''
Weight: 2.3kg (5.05 lbs)
Surface Resistivity: 105-109 Ohms
Certification / Marking: cTUVus, CE
Hand-piece Cable Length:
L=122cm (48"), burn resistant, ESD safe


Handle and Work stand:

Tip-to-Ground Potential: < 2 mV RMS
Tip-to-Ground Resistance: < 2 ohms
Idle Temperature Repeatability: +/- 1.1°C (2°F) in still air
Handle Cord Assembly Length: 122cm - burn proof, ESD safe
Connector 8-pin circular DIN
Work stand W x D x H: 100mm x 200mm x 100mm (4" x 8" x 4")
Work stand Weight: 0.69 kg (1.51 lbs)
