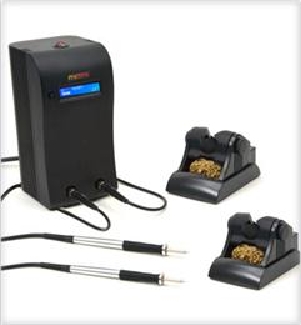

Metcal System Ps 2 Advanced Hp 2 Workstand & Access, MX-5211

Metcal System PS 2 Advanced HP 2 Workstand & Access
New Dual Port Simultaneous Soldering and Rework System highly effective for soldering applications including: lead-free, high mass components or boards, thermally sensitive components requiring low operating temperature, high volume production soldering and touch-up soldering operations. In addition, the MX-5211 can be used for conduction rework of SMDs when using SMTC Series soldering cartridges simultaneously.

Can be operated with two hand-pieces dynamically sharing the 80 watts output power based on demand adding even more application flexibility and speed.
Configured with two Metcal Advanced Soldering and Rework Hand-pieces.
Microprocessor controlled power supply providing more power for challenges such as high mass components, multi-layered boards and lead-free solders.
Improved ergonomics with lightweight hand-pieces.
Greater process control with SmartHeat® Technology.
ESD safe with incoming AC ground monitoring circuitry.
Built-in power indication meter with digital display and bar graph that dynamically provides the operator with feedback on the status of the soldering operation.
Metcal TipSaver Workstand improves tip life with its “Auto-Sleep” function.
Metcal System PS 2 Advanced HP 2 Workstand & Access Product Comprises of

Ambient Operating Temperature: 10- 40°C (50°F - 104°F)
Maximum Enclosure Temperature: 55°C (131°F)
Input Line Voltage: 100- 240 VAC, grounded circuit
Input Line Frequency: 50/60 Hz

Power Consumption: 125 Watts
Output Power Maximum: 80 Watts max. Per channel at 22°C (when operated with two hand-pieces dynamically, the 80 watts output power is is shared based on demand)
Output Frequency:13.56 MHzC
Power Cord 3-Wire: 183cm (18/3") SJT
Dimensions (WxDxH): 12.1cm x 13.0cm x 23.5cm (4.8" x 5.1" x 9.3")
Certification / Marking: cTUVus, CE
Tip-to-Ground Potential: < 2mV
Tip-to-Ground Resistance: < 2 ohms
Idle Temperature Stability: ± 1.1°C (2°F) in still air
Hand-piece Cable Length: L=122cm (48"), burn resistant, ESD safe
Hand-piece Connector: F connector
Workstand Dimensions (WxDxH): 8.6cm x 19.1cm x 8.3cm (3.4" x 7.5" x 3.3")
Weight of the power supply: 3.35 kg (7.4 lbs)
Weight of the * workstand: 0.476 kg (1.05 lbs)

MX-PS5200 Power supply, 100 to 240 VAC input, dual switch port with LCD Display
MX-H1-AV Two Metcal Advanced Hand-pieces, Soldering and Rework with two cartridge removal pads
MX-W1AV Two Workstands for Metcal Advanced Hand-piece, Soldering and Rework with two sponges and two brass pads
NOTE: No tip/cartridge included.Takes STTC Series and SMTC Series tips
