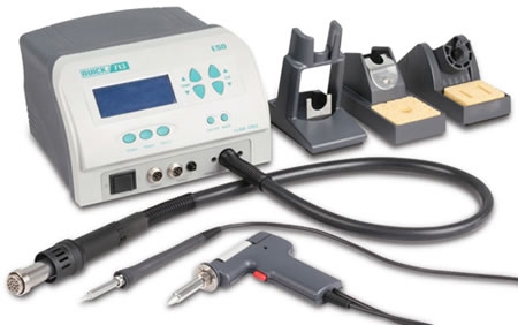

Quick 713A - 3 Channel Rework Station

3-in-1 rework system combines a soldering and desoldering function and hot air gun into
one convenient station which makes work more efficient and takes up less space on the
benchtop. Features push button selection of desired tool and settings with a large LCD
display to show current and selected temperature and airflow.

Features:
1. Password locking function, easy control.
2. Temperature adjusted by buttons, with auto sleeping and shut-off function.
3. Digital temperature calibration, easy operation.
4. Suction pen inside hot air handle, convenient for using.
5. Brushless fan, adjustable, step less and wide range of air volume, suitable for various occasions.
6. Large air volume cooling function, long lifetime heating element. The hot air handle is protected.
7. Built-in vacuum pump, powerful suction, no need of external vacuum system.
8. Closed loop of sensor, precise temperature.
9. Light handle is comfortable for using.

Specifications

Soldering part
Power consumption 60W
Temperature range 200 - 480 Deg C
Sleeping temperature range 50-250 Deg C
Sleeping time range 1-150min
Temperature stability ±2 (stationary air, no load)
Ambient temperature(Max) 40 Deg C
Tip to ground resistance < 2 ohm

Hot air part
Power consumption 1000W
Temperature range 100-500
Air volume 1-120L/min
Ambient temperature(Max) 40
Temperature stability ±2 (stationary air, no load)

De-soldering part
Heating power 90W
Nozzle temperature 200 - 480 Deg C
Pump Diaphragm
Vacuum pressure 600mmHG
Sleeping time range 1-150min

Uses solder tips in the 200 series
