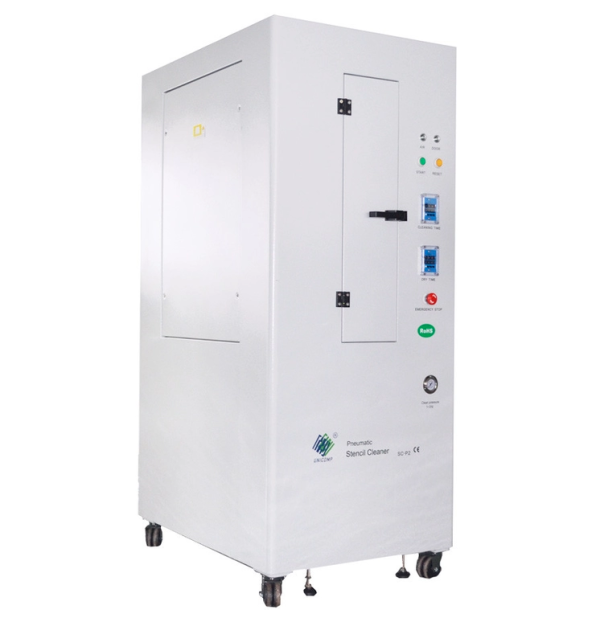

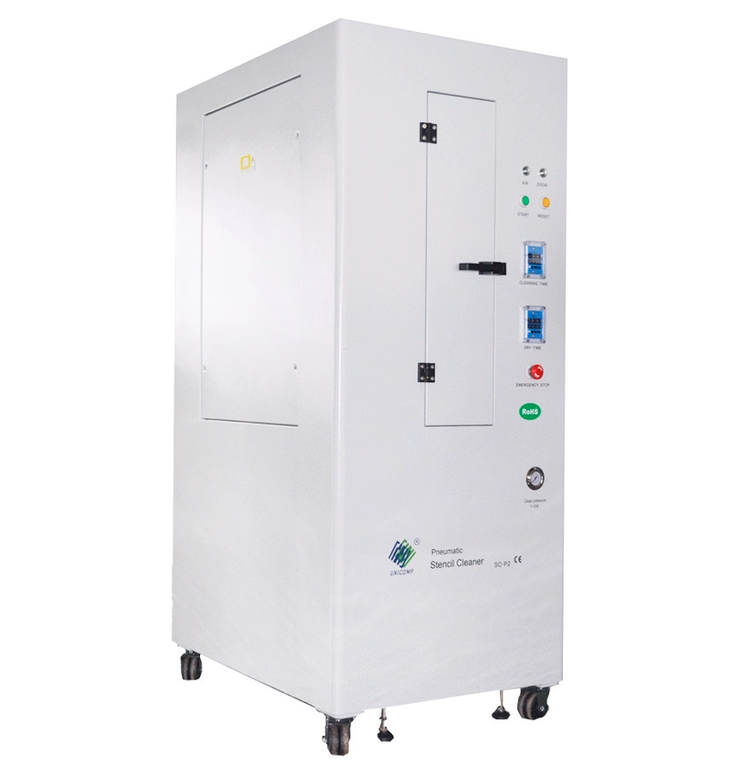

Unicmp Pneumatic Stencil Cleaning Machine.


Product details:

SC-P2 features


Completely uses compressed air as energy, no electricity, there is no fire hazard;

User-friendly design, one-button operation, easy to complete the cleaning, dry work.

High density isobaric bilateral rotary cleaning nozzle, high cleanliness, steel mesh tension and stability;

Automatic addition, drainage system, easy to produce flexible management;

Three filter system and small tuyere design, cleaning fluid recycling, low loss;

Systematic integration of global quality control devices, durable;

Replaceable modular controller for easy maintenance.

Dimensions

740 ( W)×100 ( L) x 1785 ( H) mm

Cleaning method

Rotary cleaning fluid injection and high pressure air injection

Stencil Size

Max.750 ( W)×750 ( L) x 40 ( H) mm(Customized)

Liquid Capacity

40L (Max) 20L (Mix)

Dry Time

4-6min

Compressor Air

0.4-0.6Mpa

Outlet size

f125x30mm ( H )

Four Levels Filter System

First Degree:20µm, second degree: 10µm, Third degree: 5µm, Fourth degree: 1µm

Uses compressed air as energy, No electricity, there is no fire hazard;


One-button operation, easy to complete the cleaning, dry work;


High-density isobaric rotary cleaning nozzle, high cleanliness, steel mesh tension and stability;


Replaceable modular controller for easy maintenance.

Detailed Product Description

Color: Blue And Sliver Name: Pneumatic Stencil Cleaner
Application: Solder Paster Liquid Capacity: 40L (Max) 20L (Mix)
Stencil Size: Max.750 ( W)×750 ( L) X 40 ( H) Mm Dimensions: 740 ( W)×100 ( L) X 1785 ( H) Mm
High Light: stencil cleaning machine, stencil washer, Dry Work Stencil Cleaner
SC-P2 Unicomp Stencil Squeegee PCB Fixtures Pneumatic Cleaner
