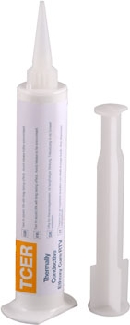

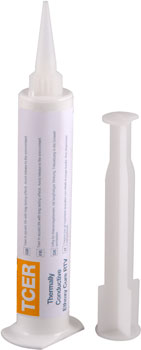

Electrolube TCER is a single component, 100% solids, low odour RTV which cures upon exposure to atmospheric moisture. The product offers a high degree of thermal conductivity and is suitable for use over a very wide temperature range, making it ideal for a wide variety of uses, particularly in automotive
applications. Combining the properties of silicone rubber pads with those of a conventional heat transfer paste, TCER has been designed to fill the gap between the device and heat sink, thus reducing the thermal resistance. It can be applied around components and power resistors to dissipate excess heat
to heat sinks, avoiding any potential overheating and subsequent failures.

Low bond strength product; suitable for applications requiring rework
Excellent thermal conductivity; optimum efficiency of heat dissipation
Very wide operating temperature range; combines properties required for the automotive market
Single component, low viscosity and room temperature curing; quick and easy to apply
RoHS Compliant

Size: 75ml
Packaging: Syringe
Colour: White
Viscosity: @ 1rpm (Pa s): 80-90
Consistency: Pourable
Density @ 20°C (g/ml): 2.3
Shrinkage on Cure: >0.2%
Skin Forming Rate*: 10-15 minutes
Cure Time @ 20°C*: 24 hours
* Curing rate and skin forming is dependent upon ambient conditions of temperature and humidity

Thermal Conductivity: 2.2 W/m.K
Temperature Range: -50 to +230 ºC
Maximum Operating Temperature (30mins): +250 ºC
Shore Hardness: A60
Tensile Strength: 2 MPa
Peel Strength: 0.28 Kgf (aluminium)
Tear Strength: 0.42 Kgf
Breaking Strength: 2.26 Kgf
Elongation at Break: 300%
Dielectric Strength: >8 kV/mm
Electrical Insulation: 1 x 1014 Ohm/cm

TCER TDS.
