Fume Extraction & Spares

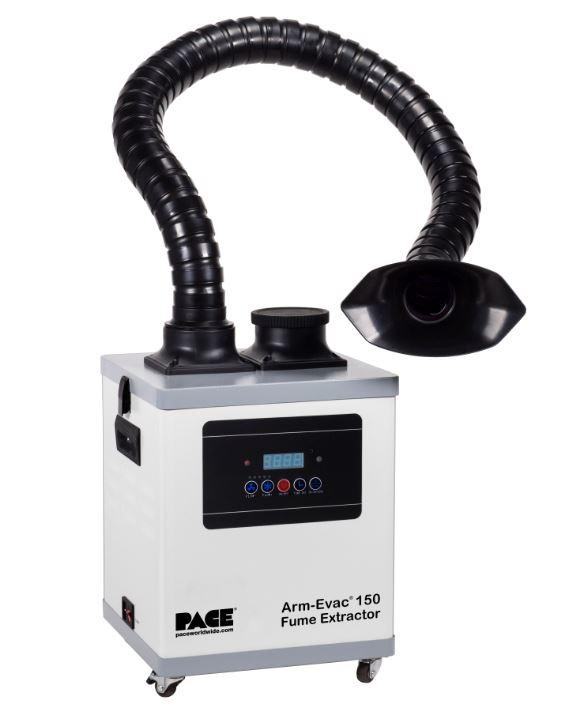

Digital fume extraction system

PACE,s Arm-Evac 150 captures hazardous fumes locally and is suitable for benchtop soldering and electronic rework applications including handheld machining operations and light, limited use of solvents, adhesives and other light and medium duty industrial applications. The low-cost Arm-Evac 150 System comes
complete with a self-supporting SteadyFlexTM ESD-Safe Arm/Nozzle assembly and 3-stage filtration system ........ everything you need to set up one operator!

SteadyFlexTM ESD-Safe Arm/Nozzle Assembly included
Low profile, compact unit fits under workbench
Fume Extraction for up to 2 operators (additional SteadyFlexTM Arm/Nozzle required)
Reliable, brushless motor pump does not require costly routine maintenance
Rugged steel case construction
Locking casters for easy mobility & portability
Superior performance and quiet operation
Optimal flow rates for use with our flex arms & accessories
Low cost, easily changed, disposable filter cartridges
Digital control panel with easy-to-read display
Wireless Remote Control included
Filter Condition Monitor & Alarm alerts user of blockage or need to change filter
10 air flow speed settings
LED Motor Speed Indicator
Time Set feature automatically shuts unit off
Control Panel Lock prevents unauthorized alteration of settings
Total Run Time Counter displays hours machine has been in use
Wide variety of filter options to meet virtually any benchtop application

Flow Rate (Gen. Purp. Combo Filter)Single Inlet: 155 CFM || Dual Inlet: 90 CFM each arm
Flow Rate (Cleanroom Filter)Single Inlet: 145 CFM || Dual Inlet: 85 CFM each
Sound Level DbA< 53 dbA 50% motor speed ||< 63 dbA 100% motor speed
Weight (With Filter)9.07 Kg/20lbs
Size: 305mm W x 305mm D x 432mmH (12" W x 12" D x 17" H)
Housing20-gauge steel (ESD safe)
Flex Arm Diameter: 60mm (2.4") Diameter
Length: 132cm (52") Length
Maximum Number of Flex Arms2

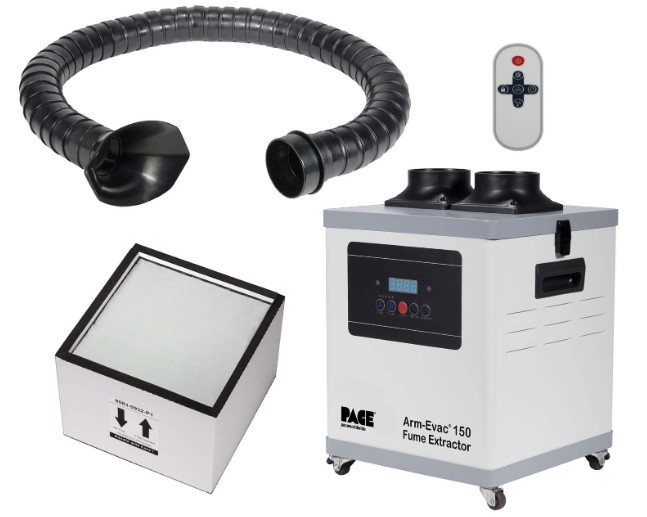

1 x Arm-Evac® 150 System
1 x Inlet Cap
1 x SteadyFlex ESD-Safe Arm/ Nozzle Assembly

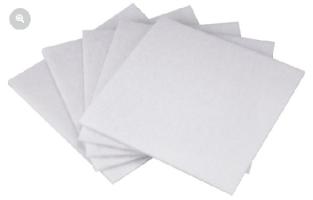

1 x Pre filter and general purpose combo filter
1 x Wireless Remote
1 x Power cord

8889-0150-P1-Brochure
