Fume Extraction & Spares

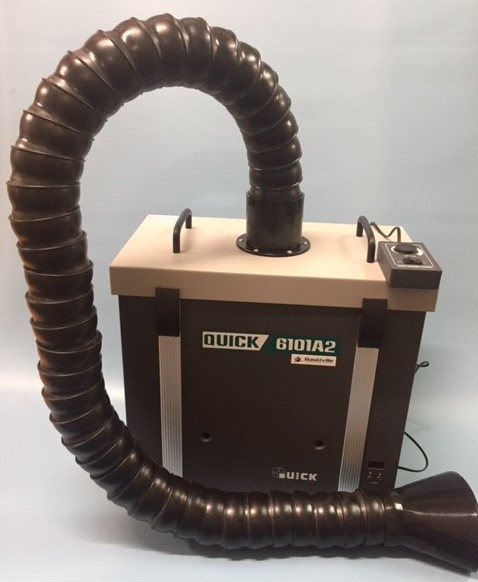

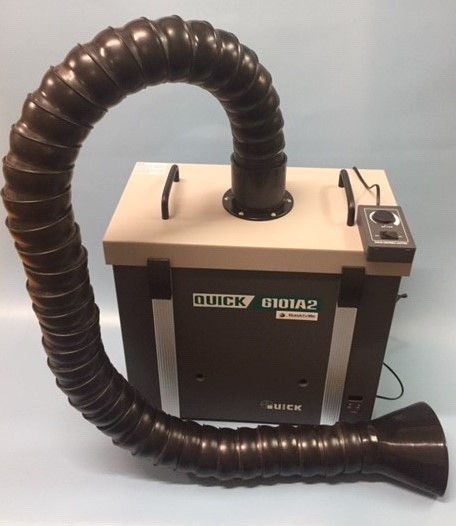

The new improved Quick single outlet fume extraction unit, with more functions.
With Hose & Absorber kit
Replaces the Quick 6101 older model.

Intelligent flow control: Through closed-loop control of flow, it ensures constant suction and saves consumables.
Intelligent peripherals (such as soldering robots/smart soldering stations) can control the operation and sleep of the purification system and are more energy efficient.

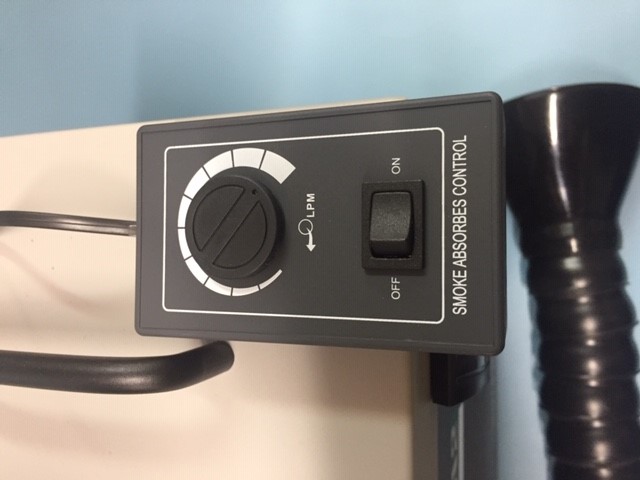

Intelligent control of the speed of the brushless motor, effectively improving the life of the motor.
The unique vortex wind wheel design has stronger suction.
Split filter design, longer filter life and lower cost of consumables.

Number of stations: 1
Static pressure: 2400 Pa
System flow (including filter unit): 100 m3/h
Filtration efficiency: 0.3 micron 99.97%
Power: 120 W
Noise: < 60dB
Voltage: AC220V
Dimensions: 420(L) × 260(W) × 415(H)mm
Weight: About 13.4kg


Built to Export Specifications

Click for replacement main filter information

TDS 6101
