Fume Extraction & Spares

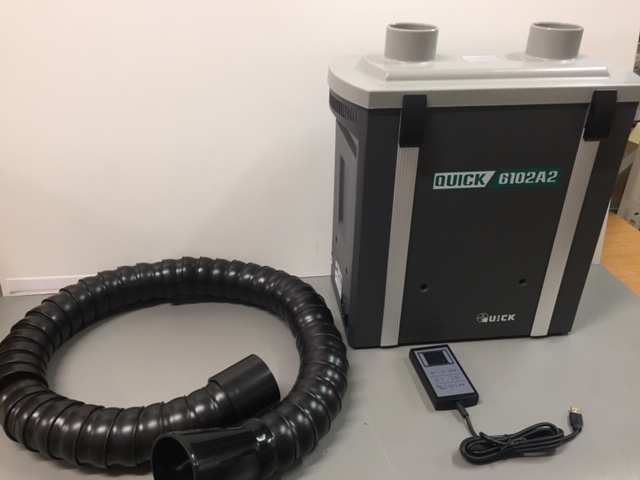

The new improved Quick , twin outlet fume extraction unit, with more functions.

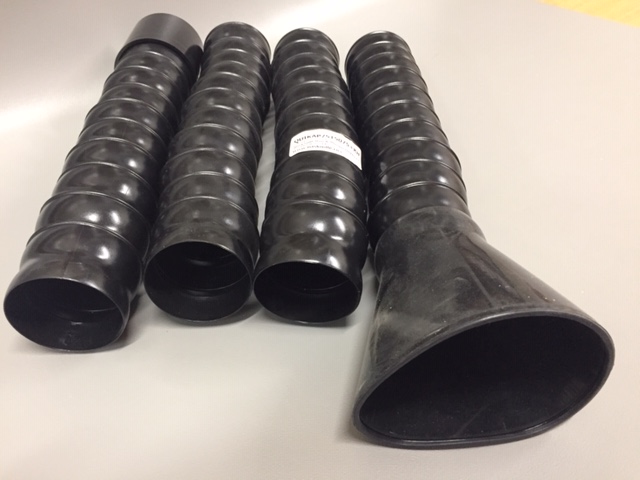

With 2 Hose & Absorber kits

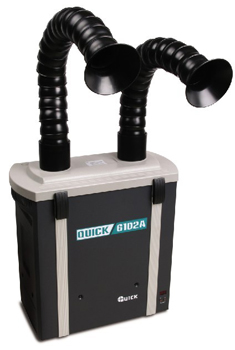

Replaces the Quick 6102 older model.

Intelligent flow control: Through closed-loop control of flow, it ensures constant suction and saves consumables.

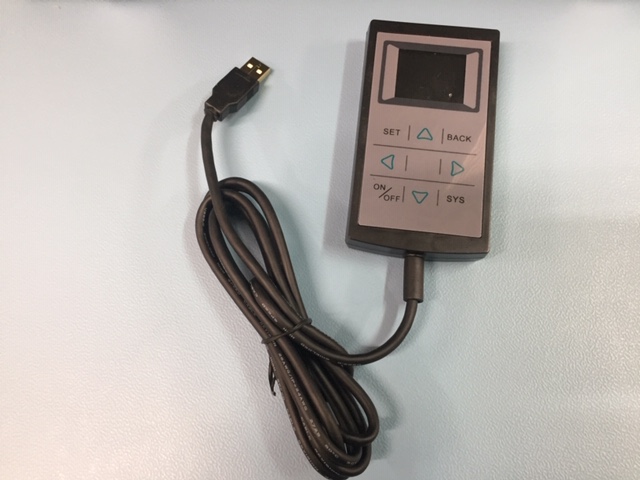

Intelligent peripherals (such as soldering robots/smart soldering stations) can control the operation and sleep of the purification system and are more energy efficient.
Intelligent control of the speed of the brushless motor, effectively improving the life of the motor.
The unique vortex wind wheel design has stronger suction.
Split filter design, longer filter life and lower cost of consumables.

Number of stations: 2
Static pressure: 2800 Pa
System flow (including filter unit): 2 x100 m3/h
Filtration efficiency: 0.3 micron 99.97%
Power: 250 W
Noise: < 65dB
Voltage: AC220V
Dimensions: 470(L) × 230(W) × 500(H)mm
Weight: About 15.5kg

Built to Export Specifications

Click for replacement main filter information

QUI6102S2T Technical Data Sheet QUICK 6102ST2 fume extractor
