Fume Extraction & Spares

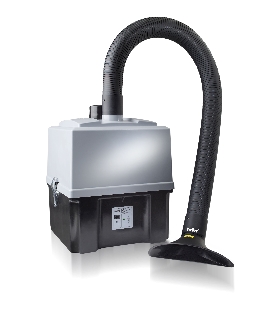

Fume Extractor, Bench Top, Zero Smog EL Kit 1 with flexible arm and funnel nozzle, 150 m³/h, 230 V, 120 VA

Fine dust pre-filter M5 that can be separately changed, without having to change main filter
Granular activated carbon filter for effective gas filtering
Portable fume extraction unit, for placement under or next to the bench-top.
Easy filter change.
Exceptionally large HEPA H13 filter surface 2,4m² for longer filter lifetime.
4-speed speed setting and power regulation.
Filter monitoring and filter alarm ensure timely filter change.
Exceptionally long service life due to maintenance free brushless EC turbine.
Quick, simple and user-friendly installation with Easy-Click System.

Dimensions L x W x H (mm): 335 x 360 x 445
Dimensions L x W x H (inches): 13.19 x 14.17 x 17.52
Weight (approx.) in kg: 8.6
Voltage: 220-240 V (50/60 Hz)
Power: 120 VA
Noise level (distance 1 m) dB(A): < 53
Max. vacuum: N/A
Capacity m³/h: 150
Pre-filter: Pre-filter mat class M5
Compact filter: Particle filter H13, Active carbon filter
Max. capacity: 1-2 workstations
RS232 interface (remote control): N/A
USB port: N/A
WX-compatible: N/A

1 x Zero smog EL fume extraction unit,
1 x flexible, adjustable arm (0F15 1.5m, Ø 60mm),
1 x funnel nozzle ALFA (225mm x 100mm),
1 x clamp for flexible arm
