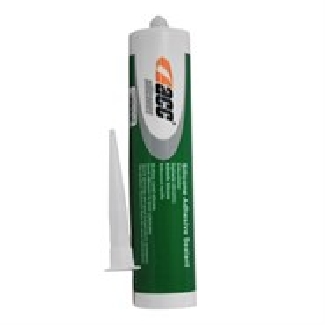

Sealant, Silicone, Thermal Conductive Adhesive, Cartridge, Grey, 310ml PRODUCT: ACCAS1802
Request a quote
Unit:
Each
Arriving Soon:
0
Available Now:
0
Availablity:
Delivery Usually 5-7 Days - Contact Us For Updated Pricing and Availablity

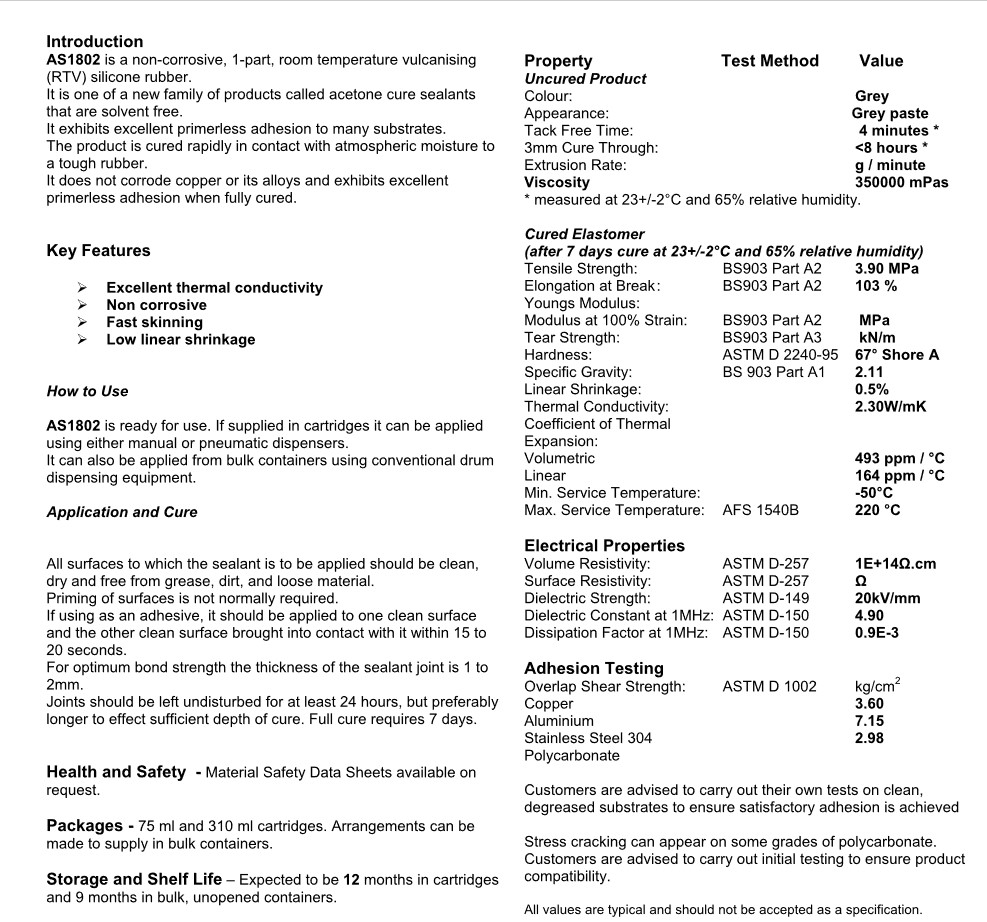

This is a non-corrosive, neutral cure, 1-part, RTV (RoomTemperature Vulcanising) silicone adhesive sealant.
Excellent thermal conductivity
Non-corrosive
Fast skinning
Low linear shrinkage
Package: 310mls cartridge
Uncured product
Appearance: Grey paste
Cure Type: Acetone
Max Cure Hrs @ 25 °C: 8 hrs
Rheology: Self Level
Self Bonding: Yes
Tack Free Time mins: 4 mins
Viscosity A-Part mPas: 350000 mPas
Cured product
After 7 days cure at 23°+/-2°C and 50+/-5% humidity
CTE Linear ppm/°C 164 ppm/°C
CTE Volumetric ppm/°C 493 ppm/°C
Colour Grey
Duro Shore A ASTM D 2240-95 67
Elongation % ISO 37 103 %
Linear Shrinkage % 0.5 %
Max Working Temp +°C AFS_1540B 220 °C
Min Working Temp - °C -50 °C
SG BS ISO 2781 2.11
Tensile MPa ISO 37 3.9 MPa
Thermal Conductivity W/mK 2.3 W/mK
UL 94V-0 No
Storage
Max storage temperature °C 40 °C
Shelf life 12 mths
