AF7115MZT

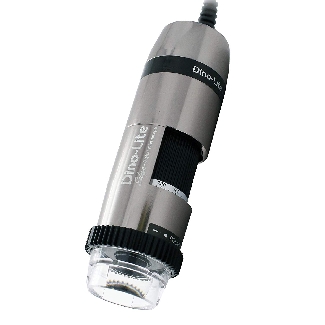

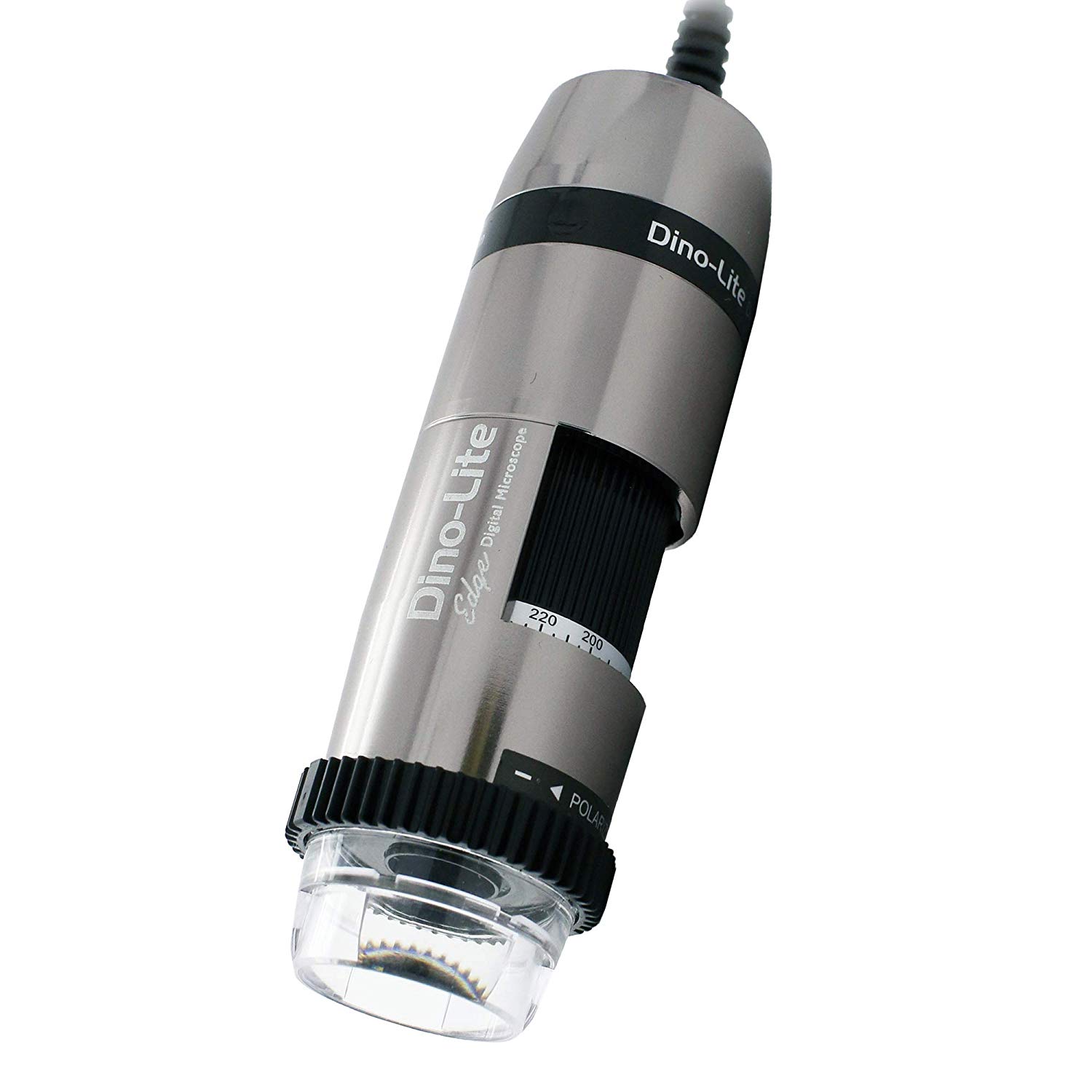

AF7115MZT is a 5-megapixel digital microscope offering high-resolution imaging with a 20x ~ 220x magnification. This model has Flexible LED Control (FLC) for maximizing lighting adjustability and a
polarizer for reducing unwanted reflections. AF7115MZT is compatible with WF-20, a Wi-Fi streamer.

High Optical Resolution
The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.

5.0 Megapixel
The 5-megapixel sensor excels at capturing fine details and can transmit high-quality images at a resolution of 2592 x 1944.

Flexible LED Control (FLC)
Tasking with software, the FLC provides a six-level intensity adjustment capability for each LED quadrant independently.

Adjustable Polarizer
The built-in adjustable polarizer removes unwanted reflection or glare from the object's surface for better contrast.

Adaptable Interface
The adaptable interface provides the capability of transforming Dino-Lite into a wireless microscope when attaching with WF-20.

Robust Metal Housing
The metal housing made of anodized aluminum alloy offers compelling advantages of protection and endurance. The anodized alloy provides extra protection from electromagnetic interference.

Model: AF7115MZT
Series: Dino-Lite Edge
Interface: USB 2.0
Resolution: 5.0 Megapixel (2592 x 1944)
Magnification: 10x ~ 220x

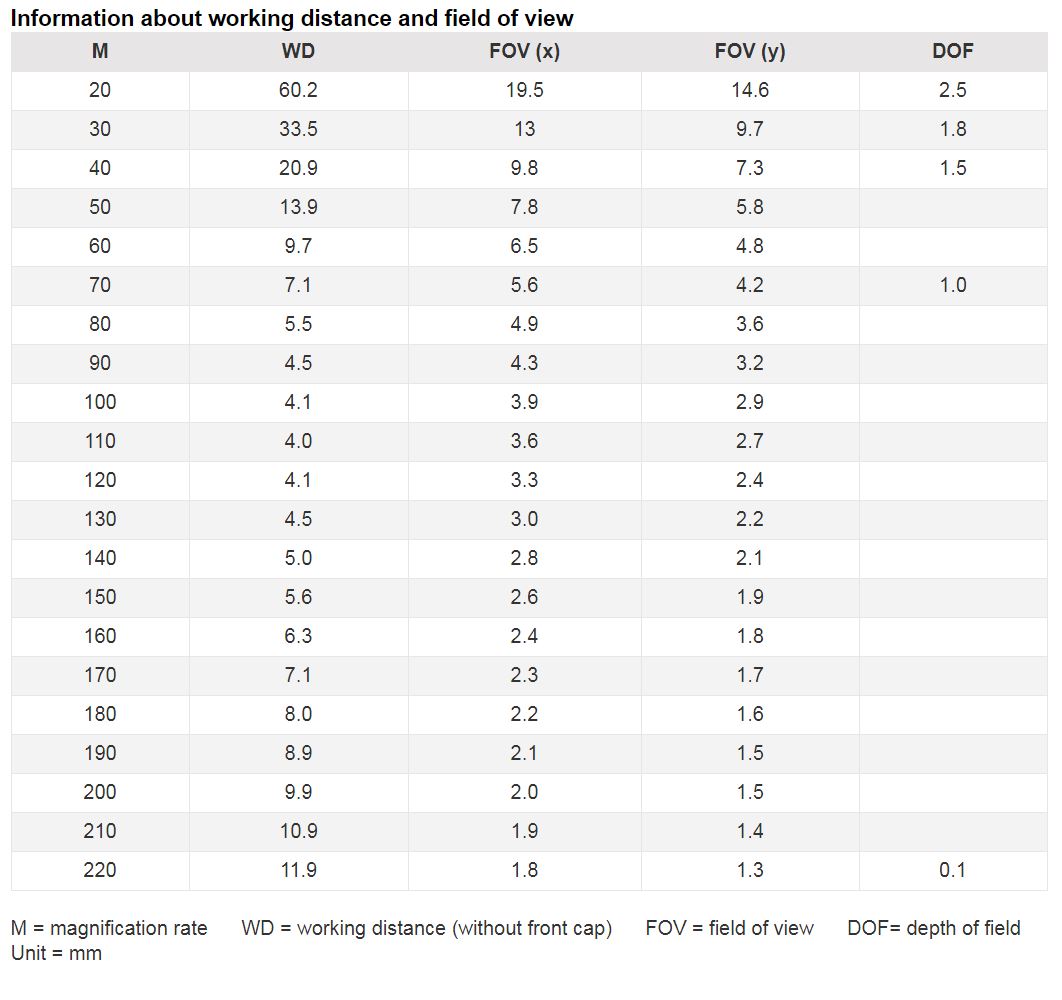

Working Distance: 142.6 ~ 12.1 mm
Frame Rate:
10 fps at 5.0 MP/3.0 MP, MJPEG
25 fps at 1.3 MP, MJPEG
30 fps at VGA, MJPEG

10 fps at 1.3 MP, YUY2
System Requirements:
CPU: 2.9 GHz dual-core Intel Core i5 equivalent or greater
RAM: 4 GB or more
HD: 150 MB available space or more
Operating System:
Windows 7/8/10/11
macOS 10.14 or later
Saving Format;
Image:
DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEG

Video:
DinoCapture 2.0: WMV, FLV, SWF
DinoXcope: MOV
Measurement Function Yes
Calibration Function Yes
Microtouch Yes
Scroll Lock Yes
Illumination 8 white LEDs
Included Front Caps
N3C-C (Close Cap)
N3C-D (Diffuser Cap)
N3C-D2 (Opal Diffuser Cap)
N3C-E (Extended Open Cap)
N3C-L (Long Cap)
N3C-O (Open Cap)
N3C-S (Sidelight Cap)
Cable Type
Detachable Micro B Type-C cable
Detachable Micro B Type-A cable
Cable Length Approx. 1.8 m
Unit Dimension 115 mm (H) x 34 mm (D)
Unit Weight Approx. 97 g
