Discontinued Equipment

ST50 Soldering Station, Cubby
NLA

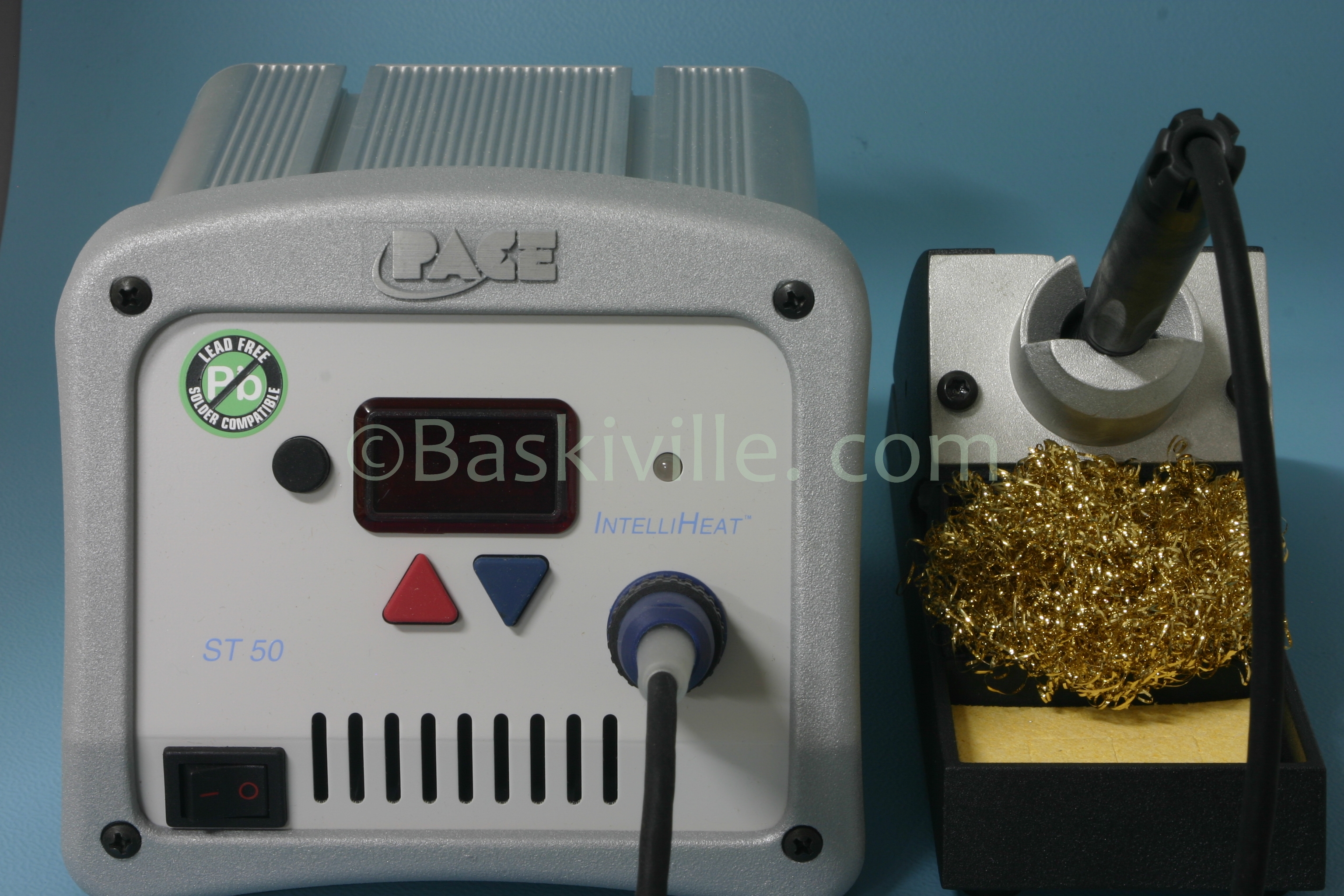

ST50 Soldering Station with TD-100 Iron
There has been an upgrade or too
Have a look at the new PACE ADS200 below

Replacement 8007-0580 or 8007-0581

No Longer available see replacement options




The ST 50 is a single channel digital system featuring IntelliHeat.
This system is packaged with the TD-100 ThermoDrive Soldering Iron
and can be used with any of 3 other optional handpieces. The optional
Instant SetBack Cubby is available for the TD-100 ThermoDrive Soldering Iron
to extend tip life, especially beneficial when Lead Free Solders are used.
Tips supplied separately. P/N 6019-0084-P1

The programmable features of the ST 50 can not be found anywhere on
similarly priced systems! The ST 50 improves quality, reduces costs and
eliminates the maintenance and calibration hassles associated with other
systems. The heavy-duty metal housing makes this system the ideal choice
for the harshest environments and the sloped face of the front panel is a
standard feature for ease of use. An optional mounting bracket
(p/n 1321-0609-P1) is available to mount the system under a workbench
or shelf, preserving precious bench top space.

FEATURES
IntelliHeat Control Technology
Digital Display & Keypad
°C/°F Temperature Scales
Password Lockout
Temperature SetBack
Auto-Off
Definable Operating Temperature Range
ESD grounding jack
ESD Safe metal housing
Stackable
Can be mounted under workbench or shelf with optional bracket

This unit is also available with the PS90 handpiece that uses the 1121 series tips.(P/N 8007-0533-P1)

Click for more Pace digital ST50 stations spares and handpieces

8007-0514-Manual.
