Discontinued Equipment

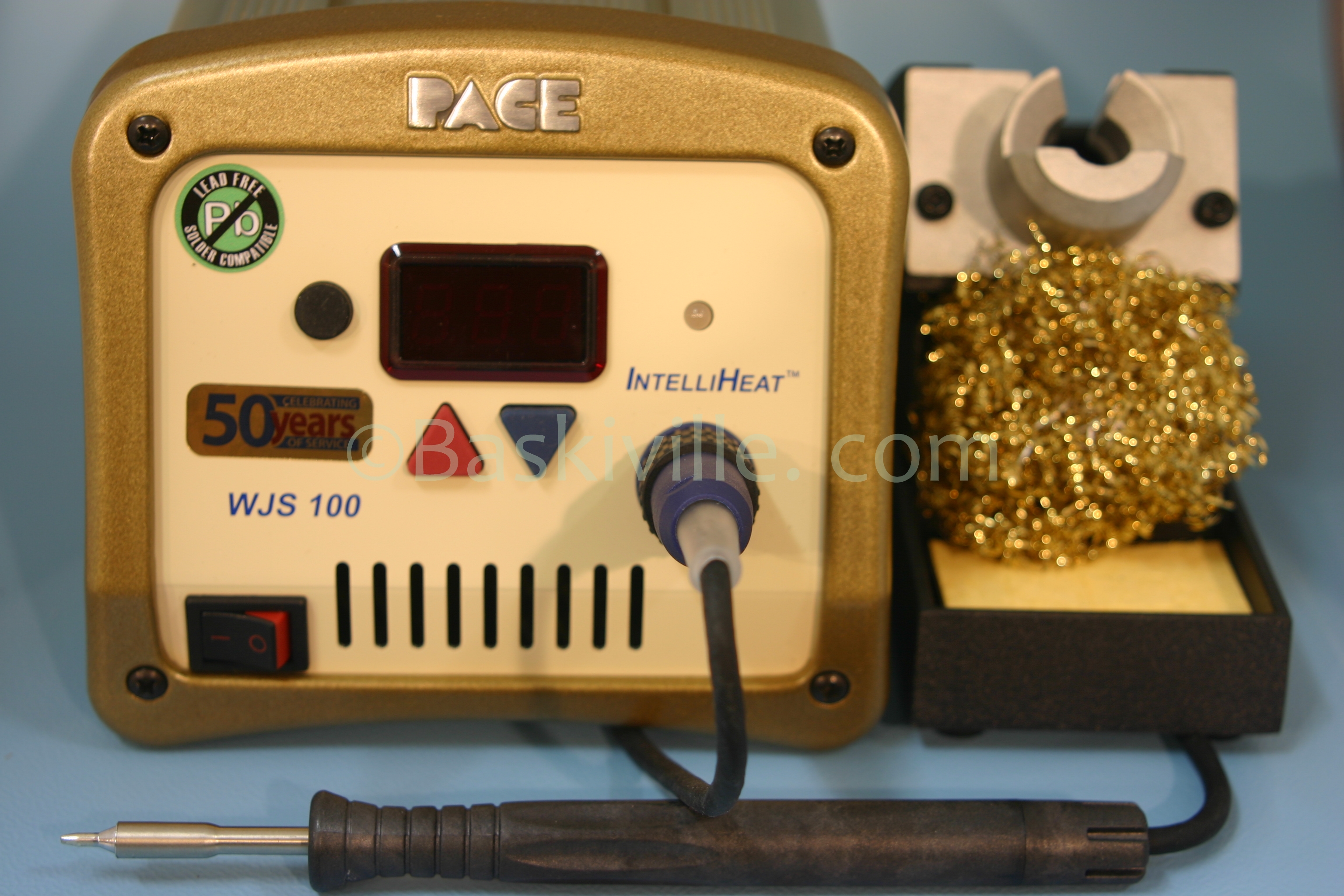

WJS 100 HIGH OUTPUT Soldering Station with TD-100 Iron and Standard Cubby.

NLA
WJS 100 HIGH OUTPUT
NLA

Soldering Station with TD-100 Iron ( ISB)
There has been an or too
Have a look at the new PACE ADS200 below

Replacement 8007-0580 or 8007-0581

No Longer available see replacement options



The WJSTM 100 featured all the advanced process control technology you have grown to expect from PACE but There has been another upgrade or too
Have a look at the new PACE ADS200 below

Integral to the WJS 100 solution is a special range of gold-end tip-heater cartridges uniquely engineered to deliver maximize heat through-put to the work and increase productivity while allowing you to solder at safer,
lower temperatures-- even with lead-free solder.

This machine uses the 1128 series tips only

The WJS-100 is fully programmable, loaded with features, and incorporates PACE’s exclusive IntelliHeat Control Technology. The WJS-100 comes standard with a special anniversary edition of PACE’s renowned
TD-100 Thermo-Drive® Handpiece, considered by many to be the most comfortable soldering handle available. But don’t take our word for it. Try one today!

Features:



· PACE’s Exclusive IntelliHeat Control Technology

· Fully programmable, digital processor, LED display and keypad.

· Password lockout guarantees your process integrity

· Temp Setback and Auto-Off helps to maximize tip life and saves on power costs.

· Definable Operating Temperature Range via Hi and Low Setting

· Nearly twice the maximum power output increases productivity at safer, lower temperatures - even on the heaviest loads.

· Lower Cost of Ownership

· The optional ISB Cubby places the iron into setback after 30 seconds of non-use. This significantly extends tip life, especially when working with lead free solders. This can be purchase individually P/N 6993-0295-P1
or the complete WJS100 can be ordered with the Instant setback at the time of ordering. P/N 8007-0561


Power Requirements: 90 Watts Max/197-253 VAC, 50/60Hz, 120 Watts Max
Dimensions: 104mm (4.1") H x 130mm (5.1") W x 152mm (6.0") D
Weight: 2.3Kg (5 lbs.)
Control Interface: LED Display, 3 Buttons, and fully programmable menu
Control Technology: IntelliHeat
Temperature Accuracy: Meets or exceeds ANSI-J-STD
Absolute Temperature Stability: 1.1°C (° 2 °F) at idle tip temp.
Temperature Range: 205° to 454°C (400° to 850°F) Nominal
Tip to Ground Resistance: 2 ohms or less
System Can be Calibrated: Yes
Tips: 1128 Series Tips Only
Handpiece: Commemorative 50th Anniversary TD-100

This is lead free solder compatible product

Click for more Pace WJS stations and high power tips

8007-0559-Manual.
