DISCONTINUED use 8888-0305-P1 (bundle units w/ flex arm and hose)

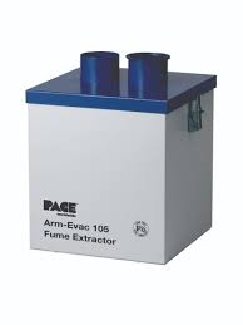

Compact Fume Extraction System with a Powerful Brushless Motor
The best protection from harmful fumes in its price range. The Arm-Evac 105 is portable, compact and can be easily placed on or under a workbench. The unit includes a brushless motor and the housing is made of heavy duty, 20 gauge steel. An inlet cap is provided to seal the unused inlet if only one flex
arm is used.
Note: Extraction Arms and accessories are purchased separately.
Portable, light and compact
Maintenance-free brushless motor
Low noise level (55 dBA)
Multiple configuration options to suit your work space
Low cost fume extraction system
Unit: Arm-Evac 105
Arm-Evac: 105E
Power Requirements:230 VAC, 50Hz
Size: 362mm H x 290mm W x 290mm D (14.25° H x 11.5° x 11.5° D)
Sound Level*: 55 dBA
Number of Inlets:Two 75 mm (3")
Flow Rate*
General Purpose FilterSingle Inlet: 220 m3/h (130 cfm);
Dual Inlet: 118 m3/h (70 cfm) per inlet
Cleanroom FilterSingle Inlet: 187 m3/h (110 cfm);
Dual Inlet: 105 m3/h (62 cfm) per inlet
No. of Collection Accessories: Two 65mm (2.5") or 75mm (3")
Maximum Duct Run: 2.5m (8') per inlet
Standard Primary Filter: General Purpose Filter
Filtration Options: General Purpose Filter, Cleanroom Filter, Adhesive Filter, Extended Life Filter, Economy Filter
1 x Arm-Evac® 105 System
1 x Pre filter and general purpose combo filter
1 x Power cord
Note: Extraction Arms and accessories are purchased separately
