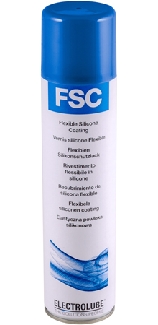

FSC is a solvent based conformal coating designed to protect printed circuit boards, particularly those exposed to high humidity environments. FSC is widely used in the rail industry and is approved to IEC-61086.

Solvent based conformal coating
Flexible
Very high surface insulation resistance
Wide operating temperature range
High level of protection offered in humid environments
May be removed with solvents such as Ultrasolve (ULS)
May be soldered through for rework
Ideal for applications requiring rework; cured coating can be removed with Electrolube ULS
RoHS Compliant

Pakage: 5Litre container
THinner Required: ELEDCT01L
Liquid Properties
Appearance: Clear translucent liquid
Packaging Size: 5 Litres
Density @ 20°C (g/ml): 0.96 VOC Content: 50%
Flash Point: Approx. 27°C
Solids content: 50%
Viscosity @ 20°C (mPa s): 550
Touch Dry Time @ 20°C: 10-15 minutes
Recommended Drying Time: 24 Hours @ 20°C
4 Hours @ 60°C
2 Hours @ 90°C
Coverage @ 25µm: 18msq. per litre (Bulk)

Dry Film Coating
Colour: Colourless
Operating Temperature Range: -50°C to +125°C
Flammability: Meets UL94 V-1
Thermal Cycling (IEC 60068-2-14): Pass
Coefficient of Expansion: 150ppm
Dielectric Strength: 80 kV/mm
Dielectric Constant: 2.7
Insulation Resistance: 1 x 1 x 10-20 Ohms/cm
Dissipation Factor @ 100Hz, 25°C: 0.001
Moisture Resistance (IEC 60068-2-78): Pass
Salt Spray (IEC 60068-2-11): Pass

Approvals
RoHS-2 Compliant (2011/65/EU): Yes
UL746E-QMJU2: Approved File Number: E138403
IEC 61086-2: Approved
IPC-CC-830: Meets Requirements
MIL-I-46058-C Meets Requirements
Approved for use in the rail industry, with IEC-61086 approval

FSC TDS.
