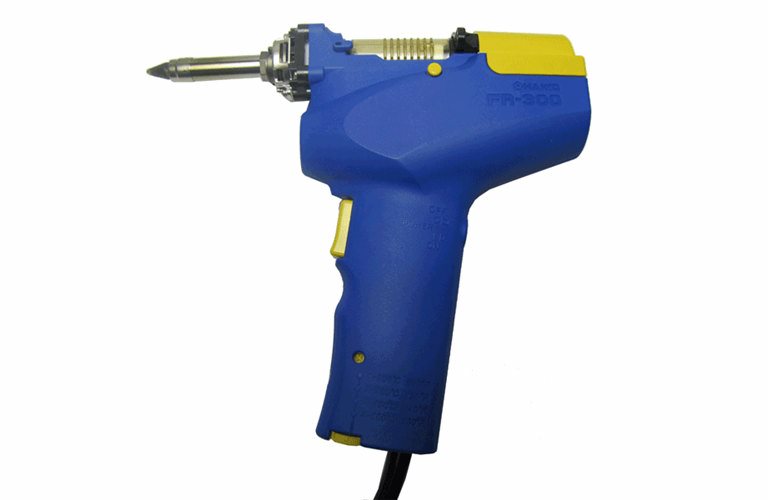

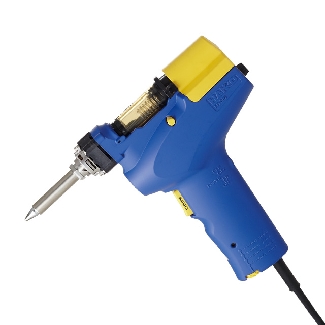

All in one, portable desoldering gun. Well balanced design with excellent heat recovery for lead free application.
Easy temperature control
Quick-change nozzle replacement with special tools
A wide selection of nozzles (N50 series)
Temperature range: 350 to 500ºC
Nozzle to ground resistance: <2O
Nozzle to ground potential: <2mV
Vacuum generator: Diaphragm pump
Vacuum pressure: 81kPa (610mmHg)
Suction flow: 11L/min.
Heating element: Ceramic heater
Standard nozzle: F1.0mm (No. N50-04)
Dimensions: 210(W)×226(H)mm (with 1mm dis. (NO.N61-08) nozzle)
Weight: 0.52kg (with 1mm dis. (NO.N61-08) nozzle)
Unit
Pre filter
Ceramic paper filter (L, qty2)
Nozzle wrench
Iron holder (simple type)
Heating pin for heating core
Cleaning pin for 1mm dia. nozzle
Instruction manual
