Discontinued Equipment

NLA
Use DESQ-D10AS

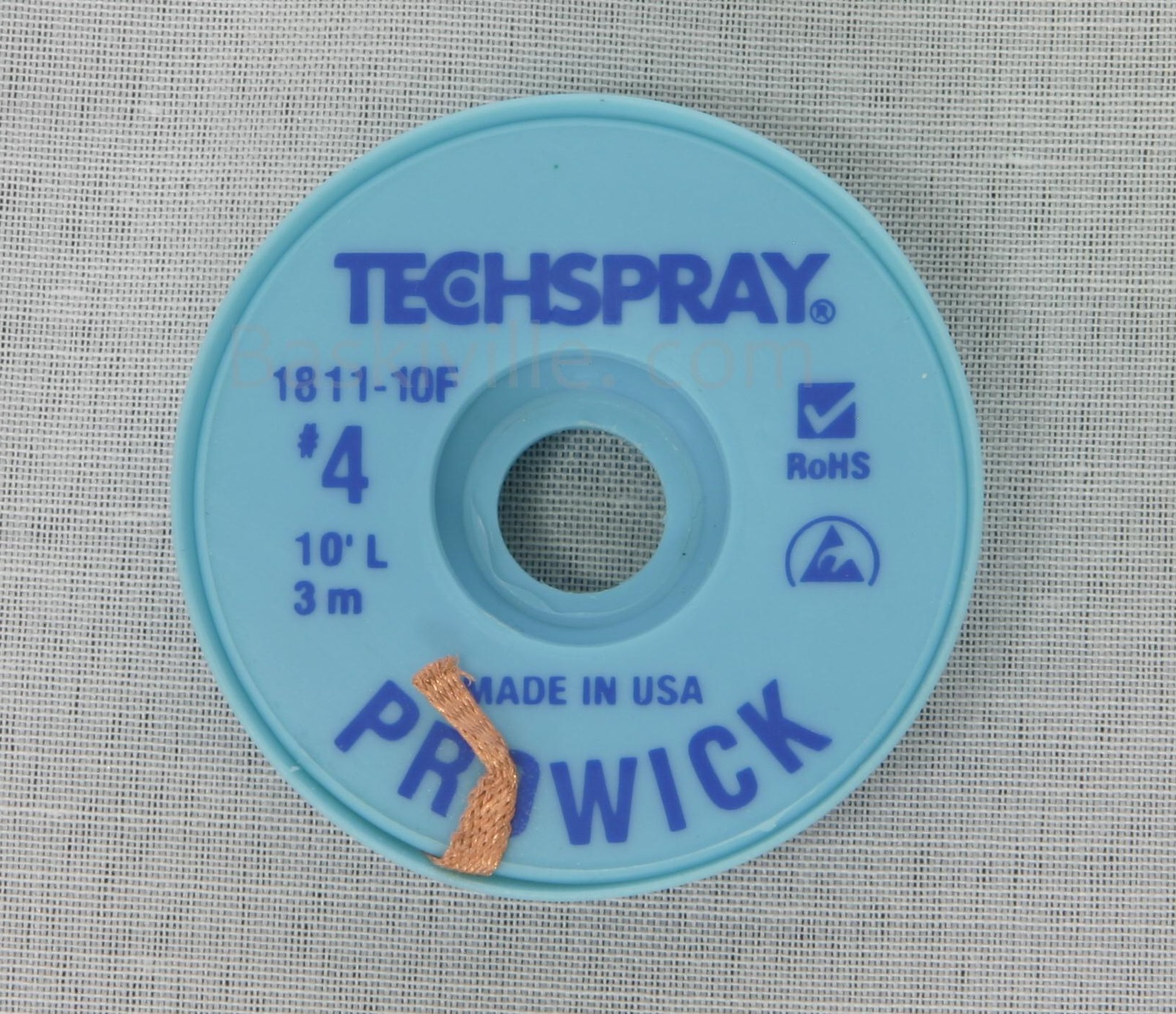

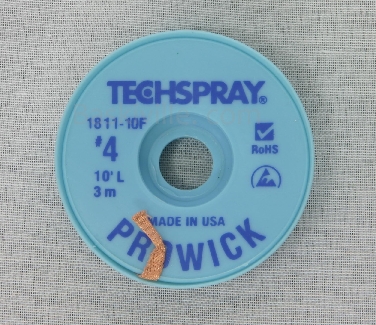

Braid No. 4
Width: 2.5 mm (0.098")
Length: 3 m (10')
ESD safe spool



Desoldering braid or desoldering wick is a pre-fluxed copper braid that is used to remove solder, which allows components to be replaced and excess solder (e.g. bridging) to be removed.
The soldering iron is applied to the wick as it sits on the solder joint, and when both are brought up to the solder's melting point, the flux is activated and, through capillary action from the braided design, solder is drawn up the wick.
Techspray wick has been a mainstay at PCB rework, repair and prototyping stations for over 30-years.

For the fastest wicking action, rosin flux coated braid is ideal for high volume PCB production/repair environments.

Meets or Exceeds: MIL-F-14256; NASA NHB 5300, 4 (34-1); NASA NPC 200-4; NASA SP5002; 1821:HP 8690-0588; 1823: HP 8690-0577; IPC Standard-J-STD-004

Standard spool
Part numbers: TS1802 to TS1806

ESD safe spool
Part numbers: TS1808 to TS1813

TS1801 to TS1813 - TDS
