Discontinued Equipment

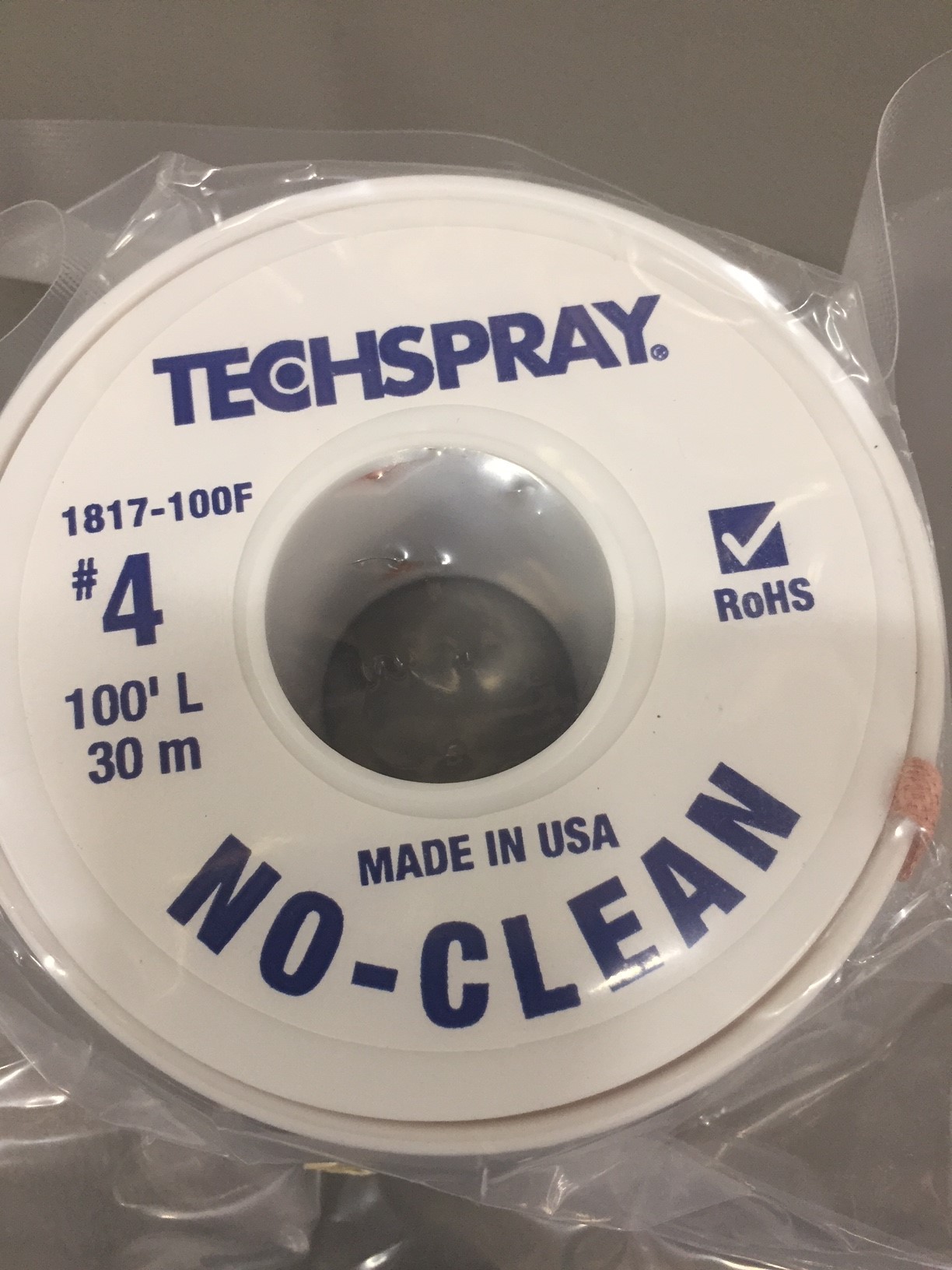

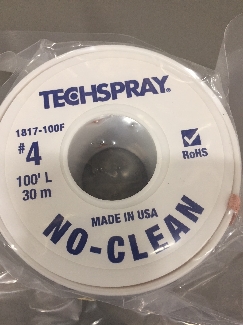

Braid No. 4
Width: 2.5 mm (0.098")
Length: 30 m (100')
Non-ESD safe spool



Desoldering braid or desoldering wick is a pre-fluxed copper braid that is used to remove solder, which allows components to be replaced and excess solder (e.g. bridging) to be removed.
The soldering iron is applied to the wick as it sits on the solder joint, and when both are brought up to the solder's melting point, the flux is activated and, through capillary action from the braided design, solder is drawn up the wick.
Techspray wick has been a mainstay at PCB rework, repair and prototyping stations for over 30-years.

Techspray No-Clean wick does not leave behind ionic flux residues that can collect and form braches called "dendrites".
Other fluxes, if not cleaned properly, can cause dendrites that grow over time and eventually cause short circuits between traces or leads.
Latent failures lead to costly returns and lower the quality perception of your products.

Meets or Exceeds: MIL-F-14256; NASA NHB 5300, 4 (34-1); NASA NPC 200-4; NASA SP5002; 1821:HP 8690-0588; 1823: HP 8690-0577; IPC Standard-J-STD-004

Standard spool
Part numbers: TS1814 to TS1817

Non-ESD
Part numbers: TS1820 to TS1825

TS1814 to TS1825 - TDS
