Cab Hektor 2 PCB Off Cut Separator PRODUCT: CAB8932145

Request a quote

Unit: Each

Arriving Soon: 0

Available Now: 0

Availablity: Delivery Usually 5-7 Days - Contact Us For Updated Pricing and Availablity

Notes
Images
Data Sheets

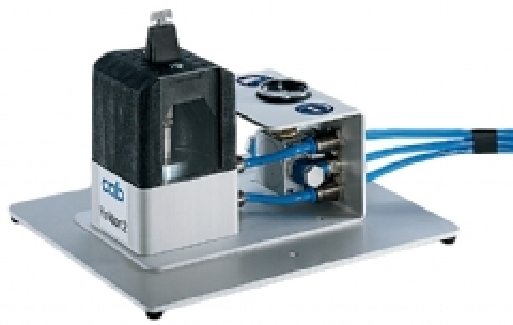

Hektor separates milled PCBs carefully and fast. The off-cut material is removed smoothly and precisely. The matrix consists of two parts. This ensures easy and cost-saving change of the blades. Compressed air is used for the separationprocess. The operating pressure can be
set on the machine. When the foot switch is pressed, the off-cut is punched out. The off-cuts are collected in the collecting box. When the gate is opened the waste material can be extracted.

Blades

The blades are manufactured of special steel. Each version is available in five standard widths. To ensure the blade will not be jammed in thePCB, the blade should be at least 0.15 mm smaller as the milled groove. We produce intermediate sizes on your demand.

Safe Operation
The PCB is slipped with its milled groove over the blade and is placed onto the matrix. The offcut
is pulled under the blade. When the foot switch is pressed, the off-cut is punched out and the waste material is collected inside the machine. With the T-blade off-cuts can be punched out right and left of the blade without turning the

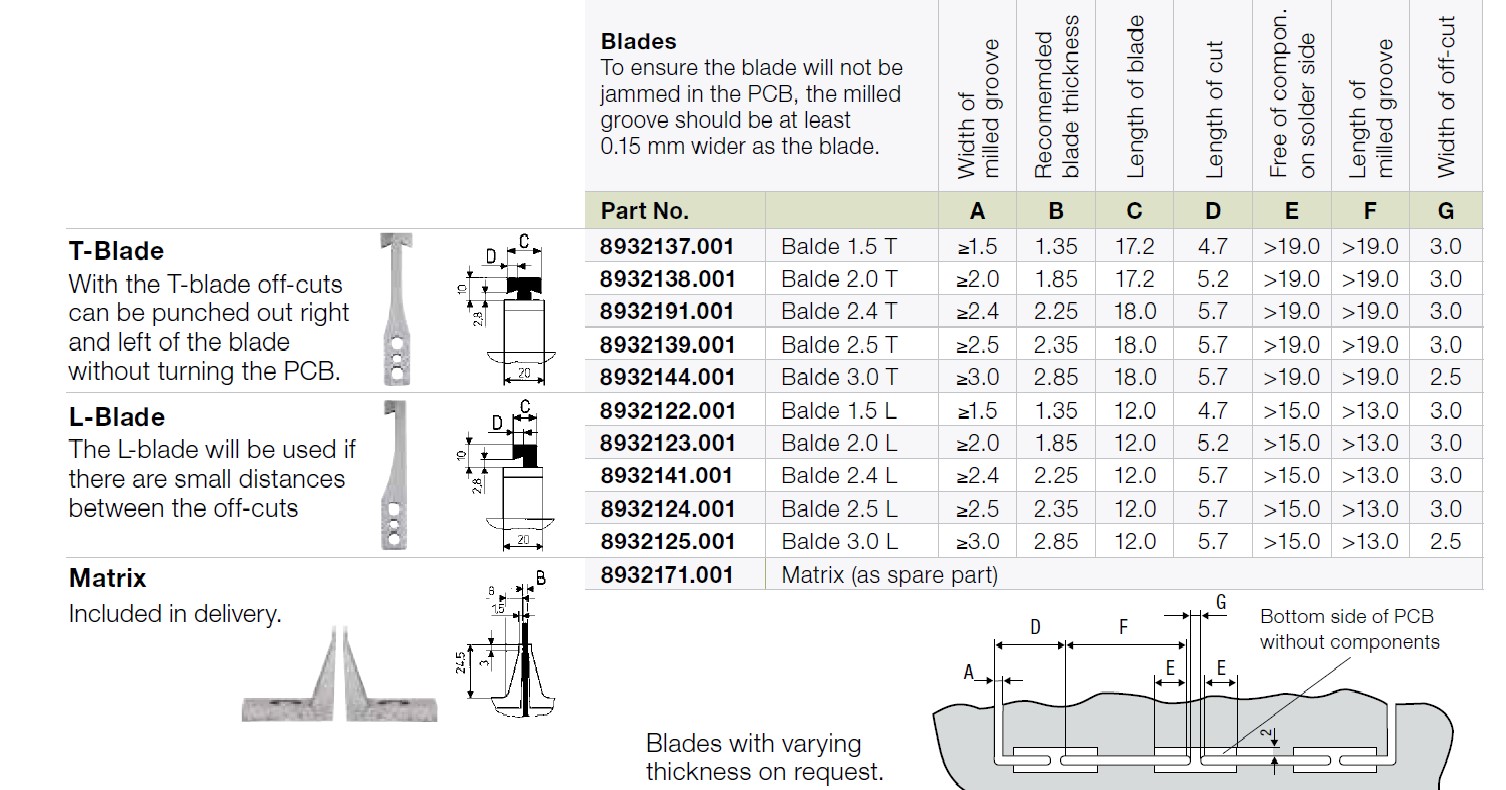

A range of different width blades from 1.5 to 3.0mm are available

BLADES not included. SOLD SEPARATELY
Matrix included in delivery
