Screwdrivers

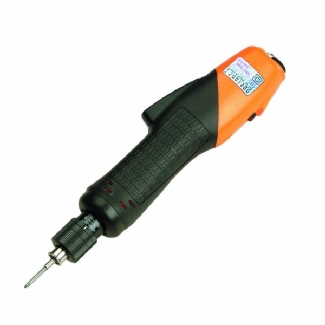

SKD-2000 Series


1.New technology, ergonomic two-color housings, high temperature-resistant, vibration-resistant, friendly holder, fashionable appearance, light, good operation, free from fatigue under long-time using.

2.Low torque 0.2kgf.cm within accuracy ±3%

3.Small, light body 270g. Specially design for the precise needing of tiny screws.

4.High tech DC motor with parts made in JAPAN with high-quality extra strong magnet, low electric current, stable running, high stability and automatically stop as the screw fastened.

5.0-8 stepless torque adjustment, rotation speed selected by switches. Hi & Lo.

6.Best for industry of cell phones, digital cameras, notebook computers, PDA, DVD, MP3, CD-R, LCD and high-tech computer peripheral.

7.Torque fixing ring(KC-4) can be set to fix torque. Slow start is optional for necessity.

8.SKD-2000L Trigger series meet UL, CE approval and ESD is offered for the needs of customer.

Model SKD-2000L
Input Voltage DC24V or DC32V
Power Consumption 25W
Torque (Kgf.cm) 0.2~3.5
(Lbf.in) 0.18~3.01
(N.m) 0.02~0.34
Repeatable Torque Accuracy(%) ±3%
Torque Adjustment Stepless
Free Speed (r.p.m) HI 1000 1000 700
LO 700 700 500
Screw Size Dia (mm) Machine Screw 1.0~2.3 1.4~2.6 1.6~3.0
Tapping Screw 1.0~2.0 1.4~2.3 1.6~2.6
Weight(g) 270
Length(mm) LC/213 / LB/222
ESD(Anti-Static) V(With Black housing)
CE V
RoHS V
Power Controller SKP-32HL-60W
Bit Type

KILBSD-9500L_TDS
