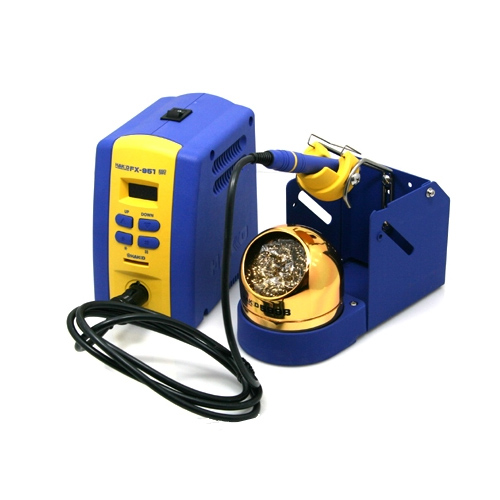

Hakko FX951 High Performance Digital Soldering Station

Compact high-power thermally-controlled soldering iron
Standard model that ensures high thermal recovery needed for lead-free soldering
Selectable soldering iron for N2 system or micro soldering as usage at your option

Std Handpiece that comes with this unit is the FM2028-01 which takes the T12 Range of Tips

Optional Fine Tip, Heater Handpiece is the FM2032-82 Which takes the T30 Tip range

Or the FM2026 which is the N2 Soldering Iron Handpiece


Model No. FX951
Power consumption 75W
Temperature range 200-450ºC
Temperature stability ±5ºC at idle temperature


Output voltage AC 24V
Dimensions 80(W)×130(H)×131(D)mm
Weight 1.2kg

Soldering Iron
Power consumption 70W (24V)
Tip to ground resistance <2?
Tip to ground potential <2mV
Heating element Composite heater
Cord length 1.2m
Total length 188mm (with 2.4D tip)
Weight 30g (with 2.4D tip)

Includes
Soldering Station (HAKKO FX-951),
Soldering Iron (HAKKO FM-2028*),
Card,
Power Cord,
Heat Resistant Pad,
Iron Holder,
Connecting cable,
Instruction Manual

Click for more Hakko FX951 parts and tips

FM2032 TDS FX8803 update. FX951 and 950 TDS FX951 manual.
