Bags Static Safe

CALDRY VF 125 is an opaque, electrostatic and EMI/RFI protective, and high barrier aluminium foil structure which offers excellent puncture resistance.
The interior sealing film is specially formulated to maximize seal strength and eliminate leaks in difficult vacuum applications, such as SMD tape and reel, quad flat packs, and JEDC trays.

Superior moisture barrier.
Excellent puncture resistance: durable for vacuum packaging applications.
For packaging of SMD's in trays, tape and reel, chip rails, and disk caddies.
Static dissipative inner and outer surfaces.
Available in class 100 clean.
Date and lot coded for traceability.
Contains no amines or amides and is N-Octanoic acid free.
Custom 6-color printing and hot stamping available.
Lead-free RoHS 2, REACH and Conflict Minerals compliant.

Manufacture: Caltex

Standard References: ANSI/ESD S20.20, ANSI/ESD S11.4 Level 3, ANSI/ESD S541, EIA 583 and JESD625-A
Roll Size: (30" X 1520m) 762mm x 1520m
Sold/pack of 100

Manufacture: Caltex
Type: CALDRY VF 125, Moisture Barrier, Open one end
Electrical Properties
Resistivity - Conductive Metal Layer (ASTM D-257): < 102 Ohm
Surface Resistivity (Outer/ Inner) (ASTM D-257): < 1012 Ohm
Electrostatic Decay (FTMS 101C) (9000 to 0 V): >0.1 sec.
Capacitive Probe Test (EIA 541): < 10 V, < 20 msec.
Charge Generation (nC/in.2): TEFLON: -0.03
QUARTZ: +0.10
Physical Properties (Anti-Static Coating / BON / AL FOIL / LLDPE / Anti-Static Coating)
Total Thickness (TAPPI 411): 6.0 mil
Light Transmission (ASTM D-1003-77): < 0.01%

Tensile Strength (TAPPI T494): MD > 29 lb./in.
TD > 24 lb./in.

Elmendorf Tear Strength (TAPPI T414): MD > 150 gm.
TD > 170 gm.

Mullen Burst Strength (TAPPI T403): 72 lb./in.2
Puncture Resistance (ASTM D-2065): > 20 lb.

Watervapour Transmission Rate (ASTM F-1249): 0.0003 gr./100 in2 24 hrs.
Heat Seal range (375oF, 0.75 sec., 60 psi): > 12 lb./in.

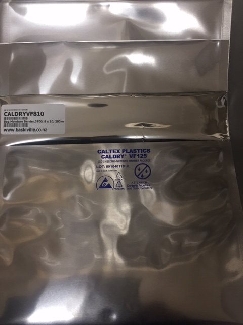

Bag Size: (8"X10") 203mm x 254mm
Sold/pack of 100 bags

CALDRY VF125_TDS
