Robots & Spares

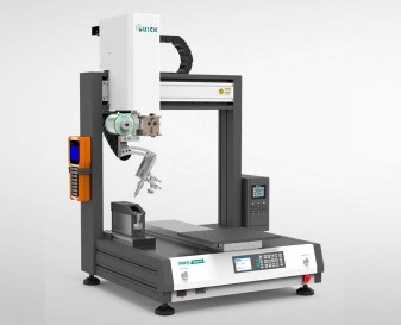

Quick Soldering Robot 9494F-A PRODUCT: QUI9494

Request a quote

Unit: Each

Arriving Soon: 0

Available Now: 0

Availablity: Delivery Usually 5-7 Days - Contact Us For Updated Pricing and Availablity

Notes
Images
Data Sheets

Specifications
340*400mm
Soldering
Model QUICK ET9494F-A
Axis 4
Power Consumption 600W
Power of Heating Controller 200W
Moving Range X/Y 400mm
Z 100mm
Speed Range
X/Y 0.1~800 mm/sec
Z 0.1~300 mm/sec
R ±180°
Repeatability X/Y/Z ± 0.01 mm
Machine Load Z 3kg
Platform 8kg
Effective Range(Soldering Area) 340*400mm
Overall Dimension(W*D*H) 745x679x899mm
Weight 80kg
