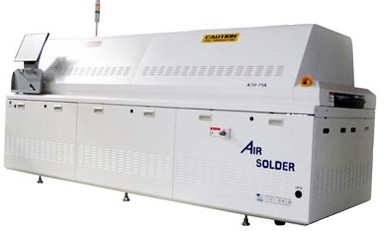

TRA I- F82S
Total Soldering Machinery
Their high-quality ovens satisfy every need in all electronic fields and beyond. Highly customizable ovens starting from the number of zones, to the width as well as numerous options for cooling
RTPM (REAL TIME TEMPERATURE PROFILE MONITORING SYSTEM) OPTION
Set the optimum profile and checks if the set profile is maintained within the error range by measuring the temperature in the oven in real time. (alarm sounds when there is an error)
Temperature profile memory for each product
No time loss when changing production model-sperate profile check unnecessary
Reflow information saved in real time -default setting is one minute interval
Remote Control Function-Allows remote control function from an office or host computer
Total Heating Length 2,200mm
Heating Zones 8
Cooling Zones 2
Peak Power 34KW/24KW (Standard Start / Partial Start)
Power Consumption 10KW ( in Stable Operation )
Dimension Length 3,620mm
Hight & width 1,420 W x 1,550 H
