Bench and Floor Earthing

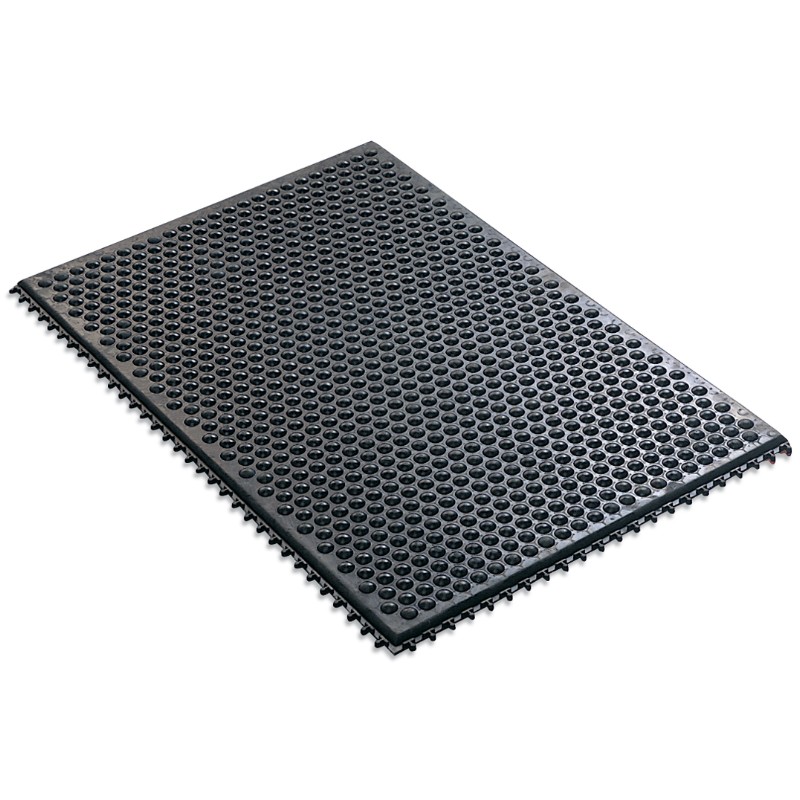

Mat StatFree, Cond., Black 12.7mm x 610mm x 914mm

Is p/n DES40930 or Charleswater p/n 80650

* Premium Nitrile Butadiene Homogenous Rubber with no clay or silica fillers
Superior durability and electricals provides value, long life without discolouring
and delamination

* Ergonomic Design Dome / Support Cell Structure
Suspended bounce feel, and matrix of “tri-radial” supports firming up as weight is
applied improves worker comfort and productivity


*Patented Interlocking Edge (Patent No. 5,907,934)
Easily configures to fit your requirements; no need to order special lengths
Attractive bevelled edge end finish allows you to use it as a stand-alone mat.

* Tested for Cleanrooms; Minimal Particulation
Suitable for use in critical environments; used in Class 1000 cleanrooms

*Exceed ANSI/ESD S20.20 required limit of <1 x 10E9 ohms for ESD floor

*Suitable as floor in ANSI/ESD STM 97.1 floor-footwear system

*Grounding Hardware NOT included
Individual mats should be grounded. Linked mats should be grounded
10-12 feet.

* Superior Warranty

*Lead-free RoHS compliant

*Made in the United States of America

*Conductive (<10E6) as defined by ANSI/ESD S7.1, Floor Materials - Characterization of Materials.

**Designed to exceed requirements of ANSI/ESD S20.20 for primary ground of mobile operators, Flooring / Footwear System - Method 1, <3.5 X 10E7 Operator Resistance to ground, tested per ANSI/ESD STM 97.1,
Floor Materials and Footwear - Resistance Measurement in Combination with a Person, when used with proper ESD foot grounders.


"ESD protective flooring, used with approved footwear, may be used as an alternative to the wrist strap system for standing operations." (ANSI/ESD S20.20 section 6.2.2.2 Personnel Grounding Guidance)

"The use of floor materials to control personnel or equipment generated static has a number of benefits. Floor materials tend to be passive. Employees who work in areas protected with floor materials simply need to wear and test the appropriate footwear.
They do not need to implement any additional actions themselves to assure that the floor material is functioning properly. " (ESD Handbook TR20.20 section 5.3.4.4)

DES40930 TDS
