Bench and Floor Earthing

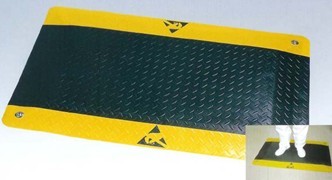

Mat, Statfree, DPL Plus Diamond Plate Floor Mat, Conductive Black Vinyl 610mm x 914mm.
Includes ground cord.

* Homogeneous Vinyl with Diamond Plated Surface Pattern Surface
Consistent electrical and slip resistant properties
* Laminated Foam Rubber Anti-Fatigue Base
Foam rubber base will not break down or absorb moisture like vinyl products
* Resistance to Ground 10E3 - 10E5 Ohms*
Designed to meet requirements of ANSI/ESD S20.20** where operators use a foot grounding system for primary grounding purposes. Excellent choice for use around automated SMT and wave machines, shipping areas, and other environments where operators stand for long periods of time
* Diamond Plate Pattern
Provides better traction especially where moisture may accumulate
*Highly Visible Yellow Border with Bevelled Edges and Radius Corners
Allows carts and chairs to roll over without damage
* Works in Conjunction with Conductive ESD Tiles or Paint
Maintains consist path to ground when on operator is on properly grounded conductive floor mat
*Includes 14234 Ground Cord
* Made In The United States of America

*Conductive < 1 x 106 ohms per ANSI/ESD S7.1 and ESD TR53, Floor Materials
Characterization of Materials.

*Designed to exceed requirements of ANSI/ESD S20.20 for primary ground of mobile
operators, Flooring / Footwear System – Method 1, <3.5 X 107 Operator Resistance to
ground, tested per ANSI/ESD STM 97.1, Floor Materials and Footwear Resistance
Measurement in Combination with a Person, when used with proper ESD foot grounders.

*ESD protective flooring, used with approved footwear, may be used as an alternative to
the wrist strap system for standing operations. (ANSI/ESD S20.20 section 6.2.2.2
Personnel Grounding Guidance)

DES40979 TDS
