Bench and Floor Earthing

GREY
Price per pack of 10 tiles
23.8 Square feet per pack of 10 tiles
2.11 meter squares per pack of 10 tiles

This free-floating, static control flooring system utilizes a patented ,hidden zipper-lock, connection.

Our 18.5 inchers x 18.5 inchers interlocking tile system is the only ESD flooring product that is suitable for use over high-moisture, irregular, and problem subfloors.

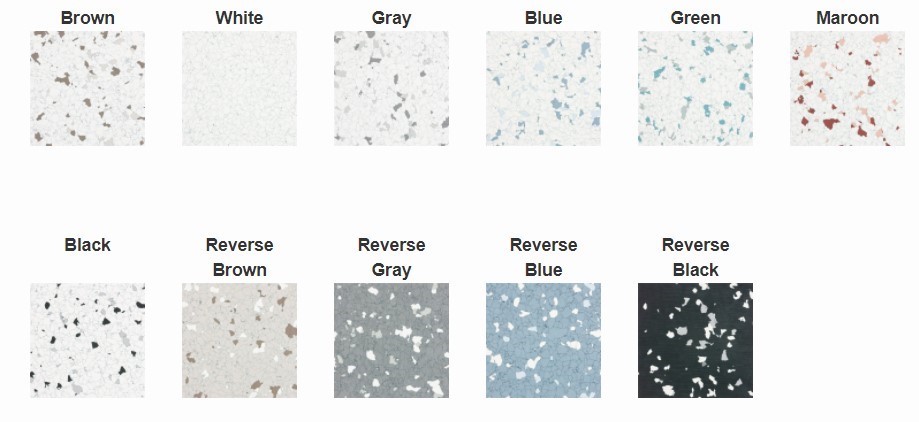

OTHER COLOURS AVAILABLE
Free-Floating Static Control Flooring System
Utilizes a patented hidden zipper-lock connection. The only ESD flooring product that is suitable for use over high-moisture, irregular, and problem subfloors

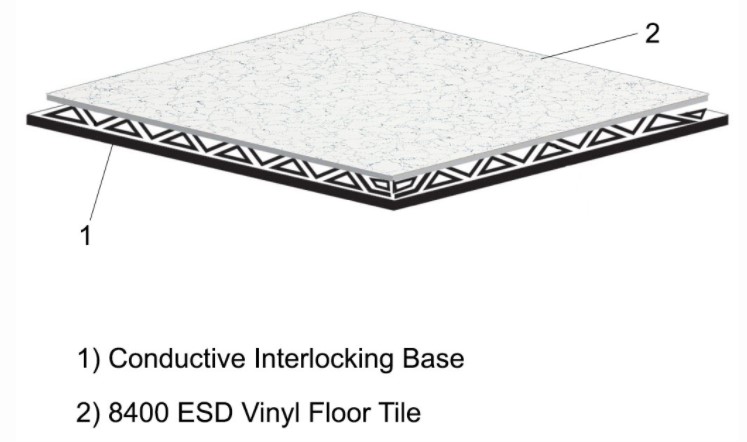

Interlocking System
18.5" x 18.5" interlocking floor tile provides tile-to-tile electrical connection
Quick Installation
Eliminates downtime costs, no adhesive required. Can be installed over existing floors including concrete, wood, rubber, vinyl, composite tiles or other standard floors
Easy Clean and Maintenance
Tiles can be easily cleaned and shined to a gloss while maintaining tis electrical properties without the use of an ESD Floor Finish
Electrical Resistance: 2.5 x 104 to < 1 x 106 ohms
Meets ANSI/ESD S20.20-2014 flooring required limit tested per ANSI/ESD STM7.1 and ESD TR53 and is suitable flooring component for personnel grounding Footwear / Flooring System
Meets Electrical Resistance per ANSI/ESD STM97.1 and Static Generation (Walking Voltage) per ANSI/ESD STM97.2
Lifetime electrical warranties and certified testing
Ten-year limited wear warranty

Interlocks provide tile-to-tile electrical connection
Quick installation eliminates downtime costs
Tile can be easily cleaned and shined to a gloss while maintaining its electrical properties , without the use of an ESD Floor Finish
Easy Installation:
No adhesive required
Install over existing floors including concrete, wood, rubber, vinyl, composite tiles or other standard floors

Static control
Leased or rented space
Access floors
Problem installations
Renovations

Meets ANSI/ESD S20.20 flooring required limit tested per ANSI/ESD STM7.1 and ESD TR53, and is suitable flooring component for personnel grounding Footwear / Flooring System.

Per ANSI/ESD STM7.1 / Annex A: The resistance of 1 x 106 ohms is historically a number used to define the point where the conductive range becomes dissipative for flooring.
The difference in the actual ESD properties of the floor is negligible between 5.0 x 105 and 5.0 x 106 ohms. Therefore, the slight variations at 1.0 x 106 ohms have negligible effects on ESD properties
Based on variation in instrumentation and other conditions, materials that test close to or at 1.0 x 106 ohms may be classified in either the conductive or dissipative range.
