Bench and Floor Earthing

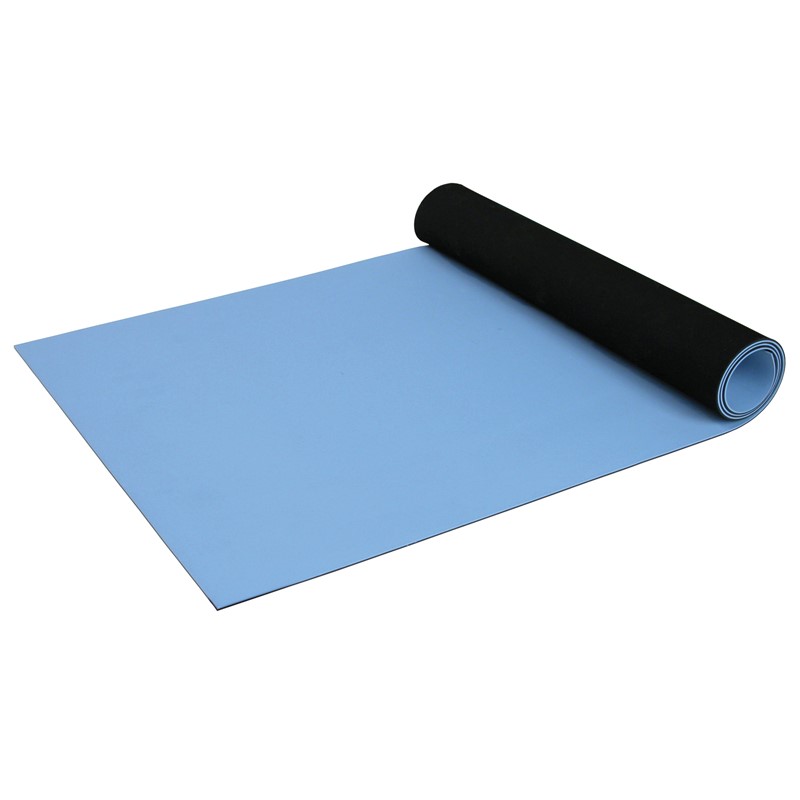

STAT-MAT 2 LAYER DISSIPATIVE RUBBER MAT

* Easy to clean
* Resistant to heat and chemicals
* Reflection breaking lightly embossed surface

CONSTRUCTION

STAT-MAT protects static sensitive products
as it is composed of two layers, with the
following characteristics:

TOP LAYER

(Coloured) Static dissipative layer to
discharge static fields at the
right speed to prevent damages

BOTTOM LAYER

(Black)
Conductive layer to quickly
drain to ground all charges
filtered by the top layer


MAIN CHARACTERISTICS

* Reflection breaking embossed surface to reduce glare and improve
operator performance
* High resiliency gives protection against small collisions
* Prevention of sliding of delicate components due to the high coefficient
of friction, which is increased by the embossed surface
* Heat Resistance: This high quality rubber compound does not melt and
does not burn coming into contact with hot metal parts or soldering debris
* High chemical resistance
* Oil resistant
* Suitable for free laying (does not require application with adhesives)
* Suitable for continuous monitoring

AVAILABLE in GREY or BLUE

PRODUCT PERFORMANCES

Surface Resistance:

EN 100015.1 = 5 x 10*6 - 5 x 10*8
EOS/ESD.S4.1990/100 V = 1 x 10*7 - 1 x 10*8
EOS/ESD.S4.1990/10 V = 1 x 10*7 - 1 x 10*8


Resistance/Ground:
EN 100015.1 = 5 x 10*6 - 5 x 10*8
EOS/ESD.S4.1990/100 V = 1 x 10*6 - 1 x 10*8
EOS/ESD.S4.1990/10 V = 1 x 10*6 - 1 x 10*8

Charge Decay:

FED TM 101 = (from 5000 to 50V) = 0.1 sec.

Lifetime dissipation warranty

*One (1) ground lead is recommended for each 10 linear feet (3 metres) for optimum performance.

Made in Italy.
