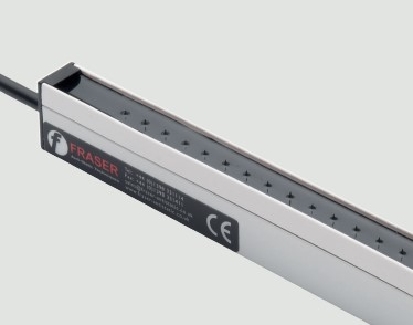

The 1250-S (w/ studs sliding in slot) neutralise static electricity on sheet, web and similar processes throughout the plastics, packaging, converting and related industries.
Powerful performance and market-leading reliability make the 1250 and 1250-S the first choice AC static eliminators for manufacturers.
The modern design gives high performance and completely shock less operation.
Stay-sharp etched emitters for better long term performance.
Emitters at 10mm pitch provide the most intense field of static neutralisation.
All electronic components are fully encapsulated for maximum reliability.
They are suitable for food, medical, pharmaceutical and many cleanroom applications.
Robust construction ensures a long life of high performance.
Simple to install - with fixed mounting studs (1250) or studs sliding in slot (1250-S).
Operating distances of up to 150mm, best distance 20 - 50mm.
Washable and easy to clean
Manufacture: Fraser
Model: 1250-S (w/ studs sliding in slot)
Construction: Anodised aluminium, epoxy resin, ABS and hardened emitters.
Cable: Hi-Flex 30 kV screened cable with 70 mm bend diameter. Standard length is
2 m - longer lengths can be specified at time of order (subject to maximum load on power unit).
Safety: 5 mA maximum current from Power Unit. High voltage resistance inside bars further limits current below 50 µA.
Power Unit: Use with Fraser 5.5 kV and 6 kV Power Units. See Datasheets.
Environmental: 60 ºC maximum temperature. 70 % rH non-condensing max. IP66. Fully sealed.
Certification: CE. UL (US and C) Listing is a free of charge option.
Options: 1250: with fixed mounting studs.
1250-S: with adjustable mounting studs.
90º cable exit option.
Bars joined in series.
Air Knife mounted - see 5000/5100 and 5500.
Airboost - see 1250 Air Bar.
Detachable cable - see 1255
1 x 1250-S-2000mm Ionising Bar w/ studs sliding in slot (S Model)
Power Supply (HP50 series) with power cord sold separately.
