Effective Ionisers for Anti-Static Control

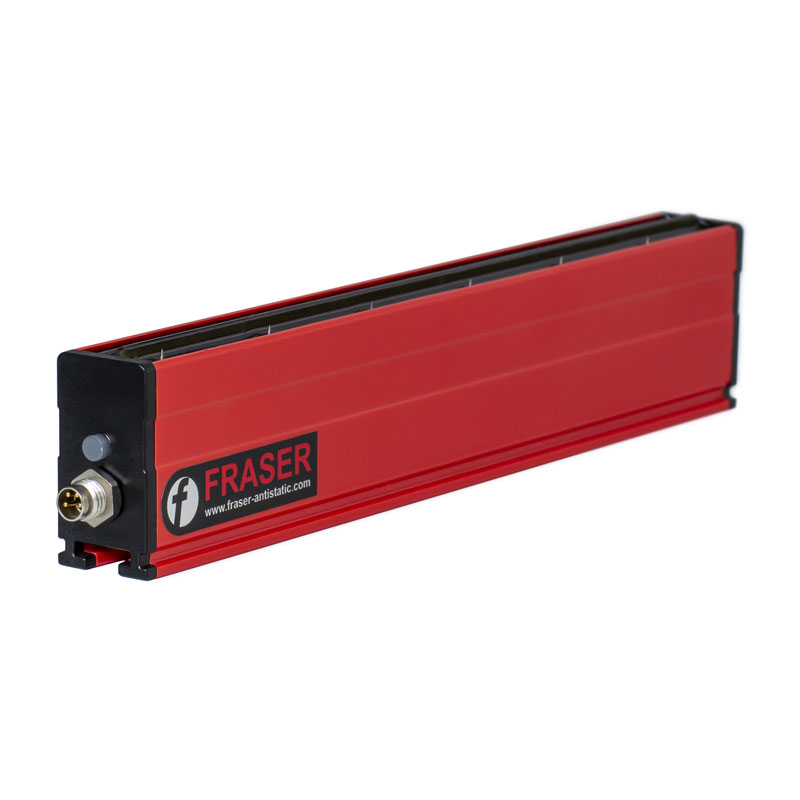

The 3024 Compact 24V DC short-range static eliminator bar meets the requirements of high-performance machinery where space is constrained.
150mm
EXTERNAL POWER CORD TO BE ORDERED EXTRA

It is the only bar available at this scale* with built-in electronics and delivers powerful static elimination at close range to a substrate or other material.
The 3024 Compact delivers up to 7.5kV integrated in the bar and is ideal for fast moving materials at speeds up to 1000m/min.
Its flexibility makes it suitable for most industrial processes, including pharmaceutical and food manufacturing, and it is particularly well suited to web and sheet applications where space is limited.

A choice of 150mm or 200mm lengths.

Optimum operating distance of 20mm to 50mm and maximum 150mm.

100% coverage. Effective length = Overall length. No dead zone.

Shockless, resistively coupled tungsten emitters for unlimited life.

Suitable for material speeds up to 1,000m/min.

LED status indication: Bar OK (green), fault (red).

Remote monitoring of operational status.

Standard M8 4-pin connector.

Protected against undervoltage, overload and reverse polarity.

An air boost bar option is also available.

Remote Monitor:
Uses 24 V supply to send signal to the PLC.
Electrical Supply:
24 V DC (21 - 28 V). 0.5 A current required standalone, 1 A if using remote monitor. M8 connector. The M8 x 4 core cable must be ordered separately - see pg 2 of TDS
High Voltage Supply:
Up to 7.5 kV supply integrated inside Bar.
Range:
Ideal: 20 - 50 mm
Maximum: 20 - 150 mm
Construction:
FR-ABS industrial grade extrusion and epoxy resin.
Protection Classification:
IP66. Fully sealed.
Environment:
0 to 55°C
70 % RH non-condensing
Weight:
150mm = 220gm
200mm = 280gm

1 x 3024CIonising Bar
Power Supply (incl. power cord) sold separately p/n FRAPSU

FRA3024C - TDS
