The 3024F is the ultimate static eliminator for machinery manufacturers: compact, with built-in electronics, 24 V DC supply and very powerful performance. Tested at speeds up to 1300 m/min, the 3024F Static Eliminator provides short range static neutralisation to meet the requirements of high performance machinery.
EXTERNAL POWER CORD TO BE ORDERED EXTRA
Operating distance 25 -150 mm
25 mm emitter pitch for intense ionisation
Tungsten emitters guarantee an unlimited life, resistively coupled for shockless operation
No dead zone: active ionisation length equals physical length of the bar
24 V DC operation, with 11 kV ionising power integrated into bar
LED indication of operational status of bar, with duplicate remote signals for PLC or to power external lamps, relays
Remote on/off switching
The 3024F Static Eliminator is specified by hundreds of OEMs and used by manufacturers in countless industries worldwide.
For longer range applications from 100 - 500 mm with changing geometry, see the 3024L Static Eliminator.
Options
100 - 250 V AC-DC 24 V Power Supply (Part No: E3024-PSU)
Construction: FR-ABS industrial grade extrusion, epoxy resin, tungsten emitters.
Dimensions: 22 x 41.5 mm (W x H).
Available Lengths: minimum order length 250 mm, then in 50 mm steps to 5000 mm.
Weight:1.1 kg/m.
Output Voltage: Up to 11 kV supply integrated into bar.
Remote Monitor / Local Status Indication: Signals available: Bar OK and Fault. Uses 24 V supply to send signal from the bar to the PLC or other destination. Bi-colour LED on endcap for local status indication.
Electrical Input: 24 V DC (21-28 V), maximum current required 0.5 A. M8 x 4-pin connector.
The M8 x 4-core cable must be ordered separately.
Environmental: 0 - 55 °C, 70 % rH non-condensing max. IP66. Fully sealed.
Certification: CE, CB and UL. Cleanroom classification to ISO Class 4.
Options: 100 - 250 V AC-DC 24 V Power Supply (Part No: E3024-PSU).
Length: 500mm

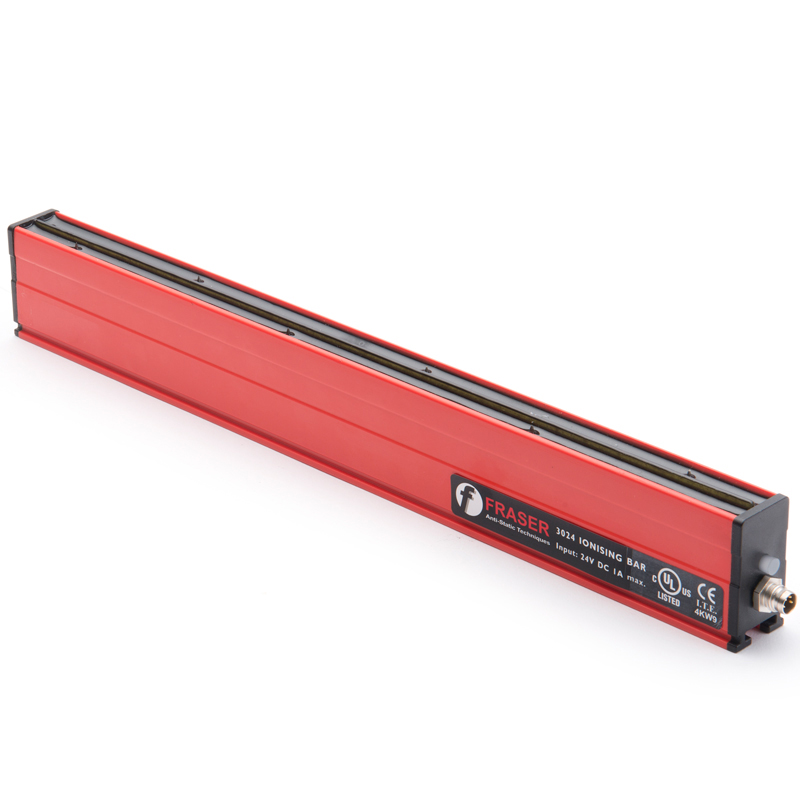

1 x 30241F-500 Ionising Bar
Power Supply (incl. power cord) sold separately p/n FRAPSU
