Effective Ionisers for Anti-Static Control

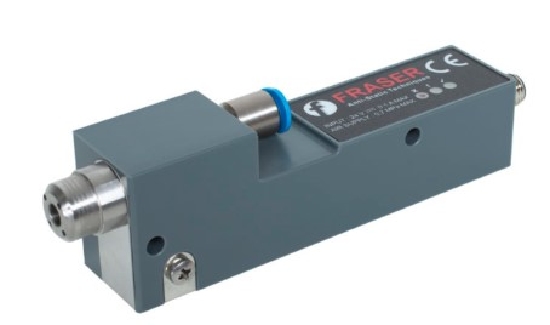

The E8001 Precision Point Ioniser has been designed for use in fixed applications on manufacturing lines, equipment and tool
applications in the telecommunications, consumer electronics, semiconductor and medical device manufacturing industries.
No need for an additional power supply. The E8001 comes with electronics and 3 kV High Frequency AC fully integrated.
A selection of interchangeable nozzles is available that can extend the precision spot ionisation over a wide range of distances and into
many hard to access areas.

The 8001 provides precision point static neutralisation and cleaning in higher technology, controlled environments and in compact industrial applications, including sensitive electronic components and assemblies.

Integrated electronics for self-contained operation, requiring only 24 V DC input and a compressed air supply
Delivers up to 3 kV of ionising power at 65 – 70 kHz
Replaceable tungsten emitter for a long, trouble-free life
Three colour LEDs on body show operational status
Additional remote monitoring of status and cleanliness through 24 V signal
8001 Precision Point Ioniser accessories (see Datasheet) include wide area showers, flexible and long nozzles, extensions and special pipework. This makes it ideal for static neutralisation, dust removal and elimination of airborne contaminants in the ESD, medical and pharmaceutical manufacturing industries.

Construction PVC body, stainless steel base, tungsten emitter.

Dimensions 123 mm x 25 mm x 32 mm (L x W x H).

Weight 80 g.

Output Voltage Up to 3 kV supply integrated into the Ioniser. 65 - 70 kHz.

Remote Monitor/Local Status Indication Two signals available: ‘OK’ and ‘Attention’. Outputs compatible with IEC 61131-2 Type 3 PLC inputs. Signal protected against shorting and miswiring.Three colour LEDS on Ioniser for local status indication.

Electrical Input Input: 24 V DC (21 - 28 V), max current 0.1 A. M8 x 4-pin male connector. M8 x 4 core cable to be ordered separately.

Air Supply 0 - 5 Bar max. 0.5 - 2.0 Bar optimum. Clean, dry air. Push-fit connector for 6 mm OD tubing.

Environmental 0 - 55 °C, 70 % rH non-condensing max.

Certification CE. Cleanroom classification ISO Class 4.

Options 100 - 250 V AC PSU also available.
