Effective Ionisers for Anti-Static Control

Operating distance between 20 <150 mm, with best performance within 50 mm
Use with Fraser EXHP or HP-ION Power Units
Maximum load 30 m of combined bar and cable

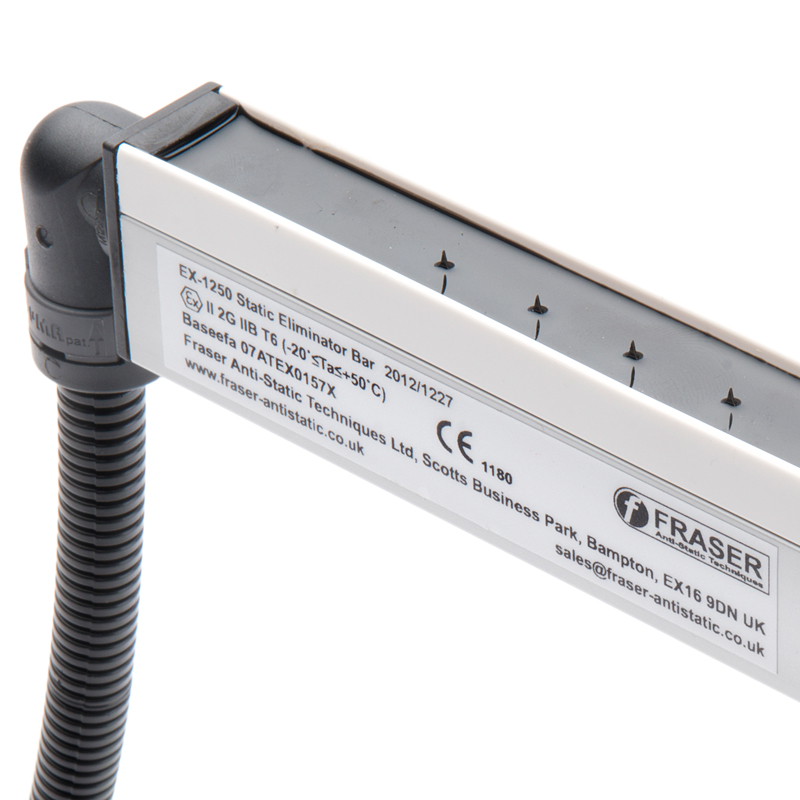

The EX1250’s wide certification covers most industrial coating, laminating and gravure printing processes.

Length: 1500mm

Construction ;Anodised aluminium, epoxy resin, ABS and hardened emitters.

Dimensions ;20 x 32 mm (W x H).
Available Lengths: any length from 120 mm to 6000 mm.
Active length is 70 mm less than overall length.

Cable ;3 m of cable in protective nylon conduit is standard, longer lengths can be specified at time of order. Please check that 3 m is sufficient to reach the power unit outside of the EX Zone.

Safety

High resistance in emitters for shockless operation.

Power Unit ;EXHP or HP-ION (Model 3111), must be positioned outside of the hazardous area.

Environmental ;40 °C maximum temperature. 70 % rH non-condensing max. Location should be dry and oil-free.

Certification ;CE, ATEX EX certified for use in hazardous areas.

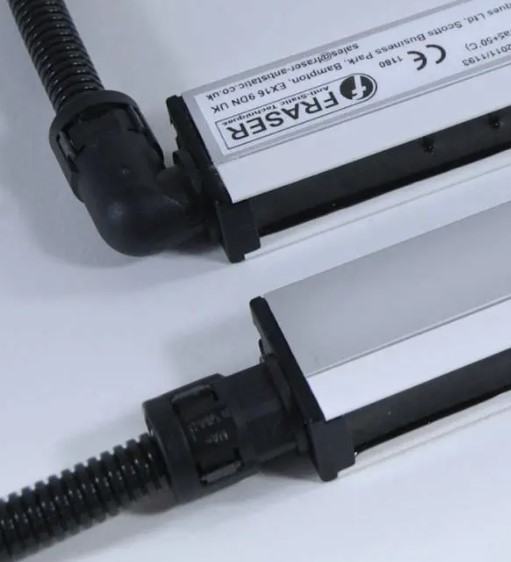

90° cable exit
Metallic protective cable conduit
Air Knife mounted ,see 5000/5100 and 5500
EXHP Power Unit, remote monitoring of operational condition/alarm , an LED can be fitted to show that high voltage is functioning
HP-ION (Model 3111) Power Unit , remote function monitoring to show status of high voltage and whether bars require cleaning
