Effective Ionisers for Anti-Static Control

The X-12L is a powerful and intelligent 24 V DC static eliminator, providing 12 kV of ionising power for longer distances up to 600 mm.

The X-SERIES range of static eliminators is a major advance in industrial static control technology. X-SERIES intelligence monitors the static charge and reacts to it by emitting the quantity and polarity of ions for fastest neutralisation.

With X-SERIES adaptive intelligence setting new levels of static neutralisation performance,
Compact size with fully encapsulated electronics
Shockless, tungsten emitters guarantee a long life
100 % coverage: overall length = effective length
X-SERIES intelligence has three automatic and three manual settings, giving the operator the ability to optimise performance for actual conditions
Local LED indication of status of bar and whether it needs cleaning
Duplicate signals for PLC or to power external lamps, relays
External on/off switching and standby mode

X-12 anti-static bars replace the NEOS 12 bars as our best-selling 24 V DC intelligent static eliminators and are available in two versions.

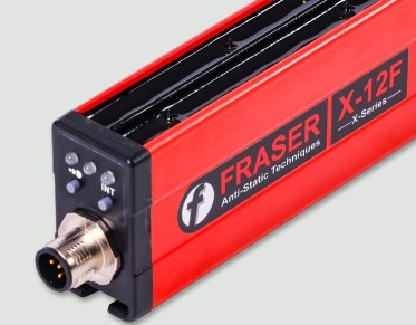

X-12F for short range applications within 100 mm of the charged material.

Construction Reinforced FR-ABS Industrial grade extrusion and endcap, fully encapsulated with epoxy resin. Tungsten emitters.
Dimensions 25 mm x 45.0 mm (W x H).
Available Lengths: 420mm
Weight 1.5 kg/m.
Output Voltage 12 kV supply integrated into bar.
Remote Monitor / Local Status Indication
2 signals available: ‘HV OK’ and ‘Attention’. Both outputs are IEC 61131-2 Type 1, Type 2 and Type 3 compatible. The outputs can also be used for direct driving of external lamps or relays. Bi-colour LEDs on endcap for local status indication, including ‘Clean Me’.
Electrical Input 24 V DC (21-28 V), maximum current required 1.5 A. M12 5-pin connector.
Environmental 0 - 55 °C, 70 % rH non-condensing max. IP67.

Certification CE and CB

X-12 TDS - Iss.1 - EN X-SERIES Manual
