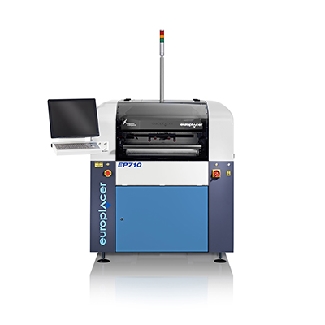

Europlacer EP710 High-Flexibility Auto-Dispense Printer


The EP700/EP710avi stencil printer combines Europlacer/Speedprints commitment to high performance and reliability with outstanding value. The system has been designed to cope with the rigors of high
volume SMT production whilst incorporating the flexibility needed in high-mix, quick product set-up & changeover environments.



The EP700avi has been designed with ease of use, maintenance and low cost of ownership in mind. The system utilises the most advanced drive control technology available, including
1 micron resolution Linear encoders on all Axes, together with a suite of intuitive software that enables total control of the printing process.

The printer is fully equipped, as standard, with many features such as automatic rail width adjust, auto stencil loading and a fully programmable Under Stencil Cleaner.

The EP700/EP710 incorporates 3Dc, an advanced user interface running on WINDOWS XP PRO & VistaTM. In addition to the simple and intuitive nature of the interface, it also provides
comprehensive self diagnostic capabilities, such as production logging and automatic fault report generation which enables ‘on the fly' troubleshooting.

The Under Stencil Cleaner is a highly efficient and fully programmable standard feature of the EP700/ EP710. It may be programmed to be run wet or dry and in any combination thereof.


The vision system utilises a unique twin roving camera ‘Look Down, Look Down' method of automatic vision alignment. This innovative vision system gives Speedprint users the unique
capability of checking for solder paste presence on the stencil before printing. The vision system aligns the PCB with the stencil using fiducial marks and/or PCB/Stencil features.

Standard features

High Precision Axe
1 Micron resolution Linear Encoders
Twin Roving Cameras
Precision Mono-fabrication
Distributed Control Network
Paste on Stencil inspection
Fully automatic Conveyor Adjustment
Programmable Vacuum Stencil Cleaner
Closed Loop Dual Squeegee control
Auto Stencil Load and eject



High Precision Axe

Precision Linear Rail and Belt Drive provides accuracy and reliability

1 Micron resolution Linear Encoders

On all axes for optimum positional accuracy

Twin Roving Cameras

Highly accurate and robust Vision Platform

Precision Mono-fabrication

Precision engineered base structure

Distributed Control Network

Localised axis control reduces cables and increases reliability

3Dc User interface

The simplest and intuitive of User Interfaces

Paste on Stencil inspection

Providing feedback & set up of paste replenishment, a unique feature within the Avi range

Fully automatic Conveyor Adjustment

Ease and flexibility to manage most PCB sizes

Programmable Vacuum Stencil Cleaner

Highly efficient wet and dry stencil cleaning system

Closed Loop Dual Squeegee control

Provides full control of the Print

Auto Stencil Load and eject

Improved speed and ease of product changeover
