Stencil Printers

New printer aligns screen printing with long boards for sectors such as LED Lighting.

Long PCBs are becoming increasingly more common.
Because of this we have introduced a new screen print platform that extends Speedprint’s board size capability.

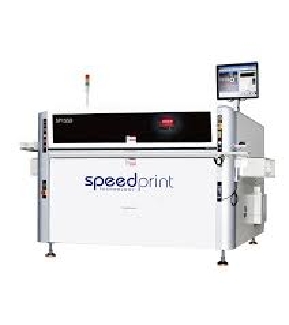

The SP1550 printer handles long boards up to 61 inches (1550mm) in length. Maximum stencil size is 72.8 x 30 (1850mm x 736mm).

Accuracy

This robust platform delivers print accuracy to 12.5µm at 6-sigma across the entire print length.
It also has repeatability performance that matches our acclaimed SP700 series printers.

It should be no surprise that alignment becomes more critical with longer boards. As a result we’ve addressed this in SP1550 by using up to four fiducials to optimise that alignment.
Solder Paste Inspection (SPI)

The SP1550 machine includes SPI inspection technology built right in. When SPI reveals the start of a degradation in paste-on-pad coverage, the machine can automatically implement an under-screen cleaning cycle. And here’s where you’ll find more innovation…

SP1550 deploys an inventive under-stencil cleaning system that cycles in the X-axis.

That dramatically minimises the usage of cleaning consumables. The multi function cleaning system provides wet, dry, vacuum and air curtain modes.
Applications

There’s a good reason we added the long board printers to our range.
SP1550 lets Speedprint users address the increasing number of assembly applications that use long PCBs with confidence. Such boards are becoming more common.
Because of this we have introduced a new screen print platform that extends Speedprint’s board size capability. The SP1550 printer handles long boards up to 61 inches (1550mm) in length. Max stencil size is 72.8? x 30? (1850mm x 736mm).
Industry’s Best Warranty

We can add more to that user confidence. Like our other printers, the SP1550 printer benefits from Speedprint’s 5-year parts plus 2-year labour warranty. That remains unique in the industry.
Low-Risk Opportunity

The SP1550 comes with the same print performance our users have come to expect from our SP700 series platform.
Therefore you get the reassurance of our generous warranty and award winning support. SP1550 gives a low risk ownership model for OEMs looking to extend their capability.
Equally it also allows CEMs to expand capacity with the option of taking on new types of business.
