Static charge Measurement

Features And Benefits Fraser 715 Static Meter

Shows where and how static is generated, its magnitude and polarity
Monitors the effectiveness of the action taken to solve the problem
Hold facility to freeze the reading displayed
Measures static electricity on the surface of a material, at a distance of 100mm

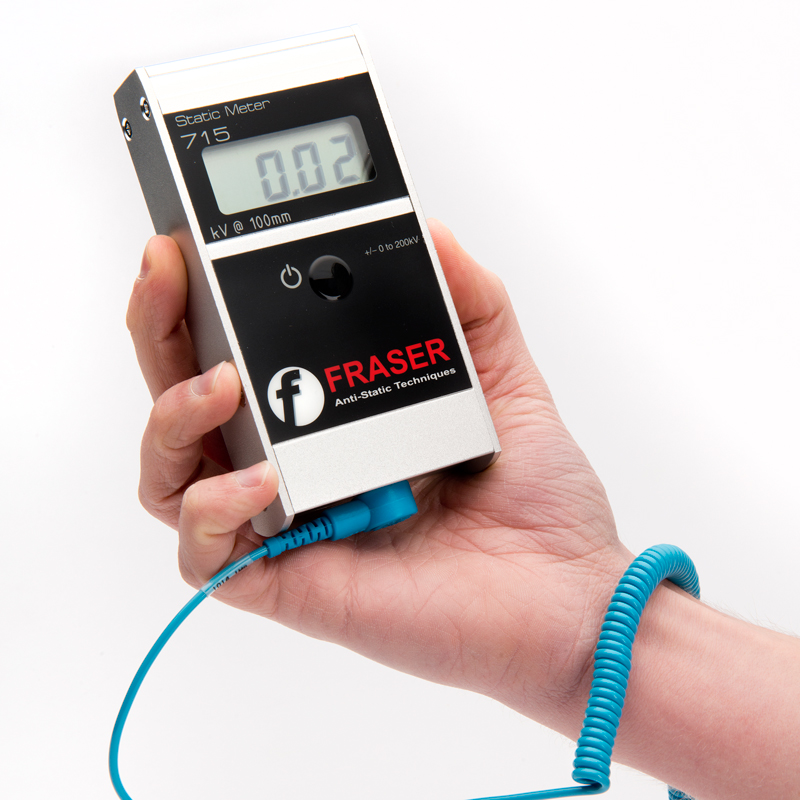

The 715 Static Meter has been developed to enable industrial engineers to investigate static electricity problems.

Its accuracy, stability and ease of use make it the leading instrument in its class.

The 715 measures static electricity on the surface of a material, at a distance of 100mm.
The meter can show where and how the static is generated, its magnitude and its polarity.
The 715 monitors the effectiveness of the action taken to solve the problem. If the solution involves static control equipment, the 715 shows its most effective position.
The 715 allows the engineer to set standards to avoid future problems. These can range from an acceptable level of charge in materials, to charge levels in products being produced by the process.
The 715 has two ranges selected automatically. The high range measures up to 200kV with a resolution of 100V. The low range measures up to 20kV with a resolution of 10V.
There is a hold facility to freeze the reading on the display.

FRA715-Technical Bulletin Manual
